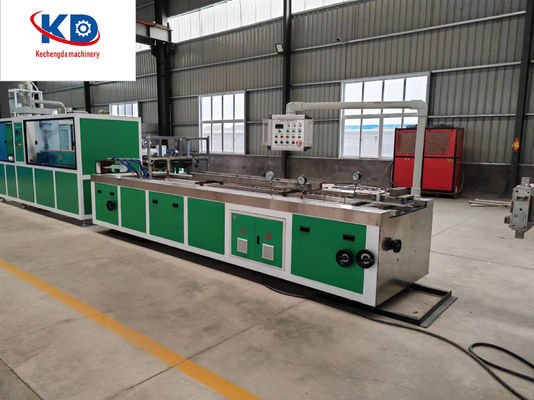

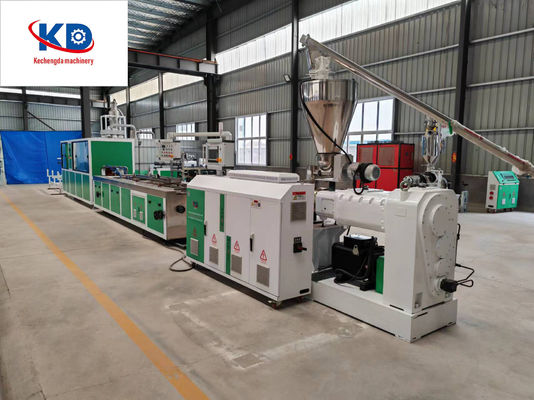

PP PE 10m Plastic Profile Extruder Machine PVC WPC Plastic Profile Production Line

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Screw | Tiwn-Screw | Automation | Automatic |
---|---|---|---|
Specification | 10m | Voltage | 380V 50Hz 3pH Or Customized |
Production Capacity | 100 Lines/ Year | Motor | Simens Beide1 |
Assembly Structure | Integral Type Extruder |
Product Description
NO. | Specification | Quantity |
1 | Double screw extruder with automatic loading system | 1 set |
2 | Die head | 1 set |
3 | Calibrating and cooling device | 1 set |
4 | Haul off machine | 1 set |
5 | Cutting machine | 1 set |
6 | Stacker | 1 set |
Extruder Model | Motor Power(kw) | Suitable Material | Final Plate Thickness | Output(kg/h) |
SJSZ51 | 18kw | PVC+CaCo3 | 300mm | 120kg/h |
SJSZ55 | 22kw | PVC+CaCo3 | 300mm | 150kg/h |
SJSZ65 | 37kw | PVC+CaCo3 | 600mm | 250kg/h |
SJSZ80 | 55kw | PVC+CaCo3 | 1200mm | 400kg/h |
