High Temperature Resistant Fluoropolymer Extrusion Line With PLC Control System
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Application:
Plastic Pipe And Profile Extrusion
Linespeed:
1-10 M/min
Applicable Materials:
PTFE, FEP, PFA, Other Fluoropolymers
Screw L D Ratio:
25 To 30
Productname:
Extrusion Production Line Series
Extrudertype:
Single Screw Or Twin Screw
Heating Zones:
Multi Zone Precise Temperature Control
Machineweight:
2000-8000 Kg
Traction Speed:
Adjustable With Synchronized Control
Dimension:
Length 10-30 M, Width 1.5-3 M, Height 1.5-3 M
Highlight:
High Temperature Resistant fluoropolymer extrusion
,fluoropolymer extrusion Line
,PLC Control extrusion machine
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description
Teflon High Temperature Extrusion Line
This specialized extrusion line is engineered for processing high-performance fluoropolymer materials under extreme temperature conditions.
Application
Designed for extrusion of advanced fluoropolymer materials including:
- FEP (Polyfluoroethylene Propylene, F46)
- FPA (Oxidized Alkoxyethylene Resin)
- ETFE (F40)
Equipment Configuration
- Screw Barrel: Constructed from GH113 steel (equivalent to US GDA material) for superior corrosion and high-temperature resistance

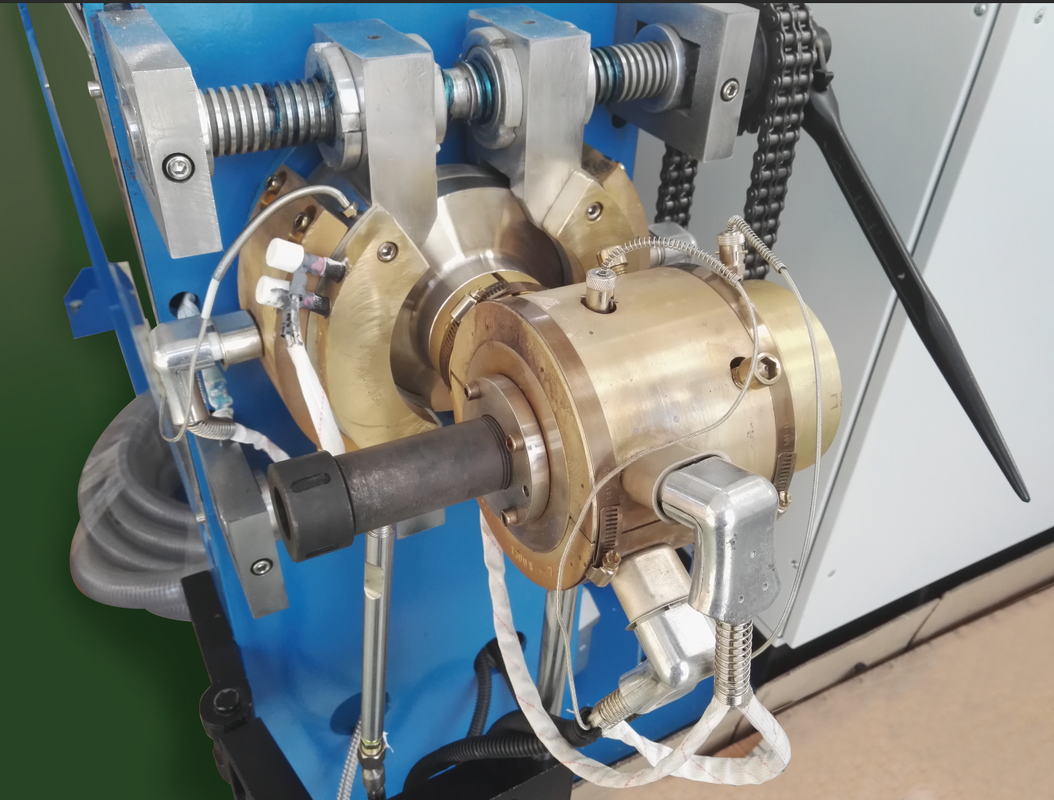

- Machine Head: Special auto-centering or adjustable head manufactured from 38CrMoAIA alloy steel
- Heating System: High-temperature resistant copper alloy heaters for precise thermal control
- Quality Control: Integrated outer diameter detection feedback system for real-time monitoring of diameter and concentricity
- Electronic Control: Advanced imported frequency converters and PLC touch screen control interface
Technical Specifications
| Machine Model | Pay-off Type | Screw Diameter | Screw L/D Ratio | Extrusion Capacity | Mainframe Power | Temperature Control | Wire Spec |
|---|---|---|---|---|---|---|---|
| ZD-35 | Active / Passive | φ30 mm | 25:1 | 15 kg/h | 7.5 kW | 6 zones | φ0.1-3.0 mm |
| ZD-45 | Active / Passive | φ45 mm | 25:1 | 25 kg/h | 11 kW | 6 zones | φ0.2-6.0 mm |
| ZD-65 | Active / Passive | φ65 mm | 26:1 | 60 kg/h | 30 kW | 7 zones | φ3.0-28 mm |
| ZD-90 | Active / Passive | φ90 mm | 26:1 | 150 kg/h | 75 kW | 9 zones | φ5.0-42 mm |
| Finished Cable Diameter | Cooling System | Accumulator Type | Capstan Power | Take-up Type | Electrical Control |
|---|---|---|---|---|---|
| φ0.3-4.0 mm | Single/Double U type | Inclined/Horizontal | 2.2 kW | Double-axis axle-mounted/bundle | Frequency + PLC control (optional) |
| φ0.4-8.0 mm | Single/Double U type | Horizontal | 4 kW | Double-axis axle-mounted/bundle | Frequency + PLC control (optional) |
| φ4.0-32 mm | Single/Double U type | Horizontal | 4 kW | Double-axis axle-mounted/bundle | Frequency + PLC control (optional) |
| φ8.0-50 mm | Single/Double U type | Horizontal | 7.5 kW | Shaftless double bobbin bonding | Frequency + PLC control (optional) |
Product Advantages
As a core solution in the Extrusion Production Line Series, this system delivers exceptional performance under high-temperature conditions, ensuring uniform insulation thickness and superior surface quality.
- Advanced PLC control system reduces manual operation and enhances production efficiency
- High-temperature resistant components extend equipment service life and minimize maintenance costs
- Modular design enables flexible configuration for various wire sizes and fluoropolymer materials
- Compliance with international manufacturing standards for global market suitability
Target Markets
The Teflon High Temperature Extrusion Line, part of our comprehensive Extrusion Production Line Series, serves wire and cable manufacturers across global markets including Asia, Europe, the Middle East, Africa, and the Americas. The system is particularly suited for international projects and export-oriented production requirements.
