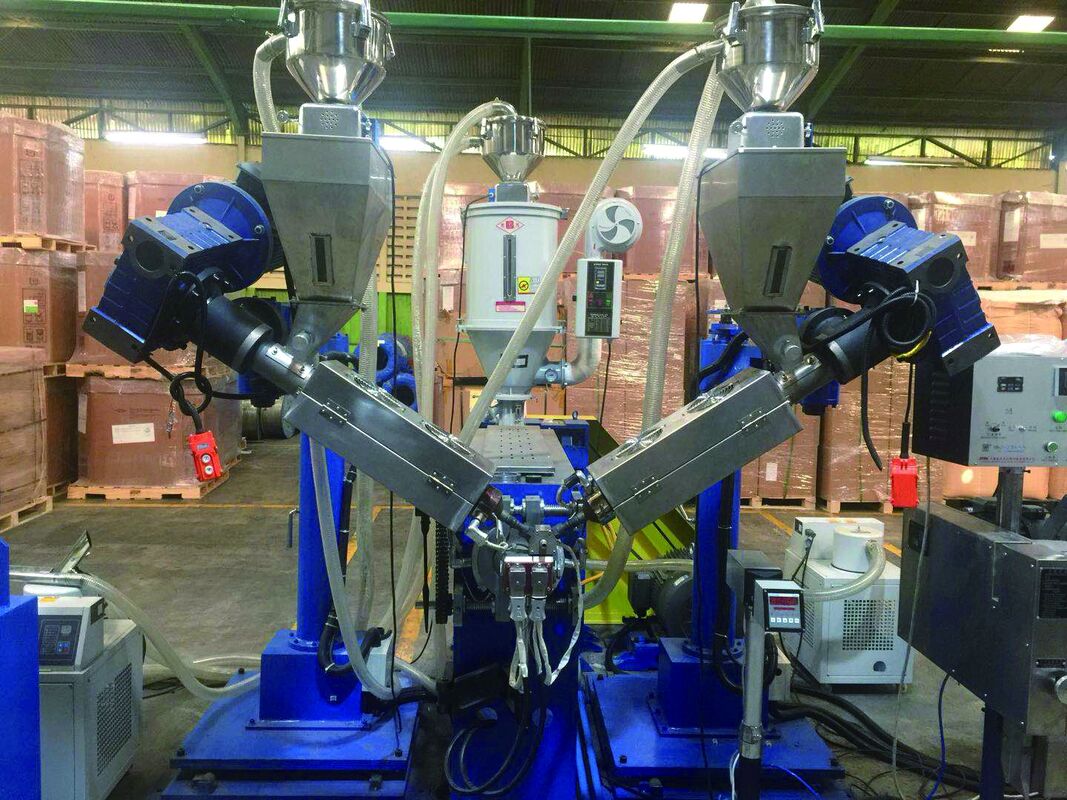

High Speed 500m/Min Automotive Wire Extrusion Machine With PLC Control System
|
High Speed 500m/Min Automotive Wire Extrusion Machine With PLC Control System
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Linespeed:
0-30 M/min
Machinedimensions:
Varies By Model
Warrantyperiod:
12 Months
Outputcapacity:
50 Kg/h - 1000 Kg/h
Heatingzones:
4-6 Zones
Controlsystem:
PLC With Touch Screen
Voltage:
380V, 50Hz, 3 Phase
Coolingmethod:
Water Cooling
Dieheadtype:
Single Or Multi-layer
Application:
Plastic Pipe Extrusion, Profile Extrusion
Highlight:
500m/Min wire extrusion machine
,Automotive wire extrusion machine
,High Speed profile extrusion line
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description
Automotive Wire High-Speed Insulation Extrusion Line
This advanced extrusion line is engineered for high-speed production of automotive wiring with precision insulation coating and superior electrical performance.
Application Scope
- Automotive special flexible cord
- Low voltage ordinary wire AV
- Low voltage thin-skinned wire AVS
- Low voltage ultra thin-skinned wire AVSS
- Electronical irradiated PVC low voltage wire AVS
- Electronical irradiated PE low voltage wire AEX
Equipment Configuration
Complete system includes pay-off stand, straight flat table, main machine, main control cabinet, water trough, cable storage rack, traction device, and take-up machine with auxiliary components.
Optional Accessories
- Flyer type pay-off
- Swing arm type pay-off
- PLC computer all-process control
- Laser diameter gauge
- Copper wire preheater
Technical Specifications
| Machine Model | Pay-off Type | Screw Diameter | Screw L/D Ratio | Extrusion Capacity | Mainframe Power | Wire Spec | Cooling System |
|---|---|---|---|---|---|---|---|
| ZD-50+35 | Active / Passive pay-off | φ50 mm | 25:1 | 70 kg/h | 11 kW | φ0.75-4 mm | Single layer / Double U type |
| ZD-60+35 | Active / Passive pay-off | φ60 mm | 26:1 | 110 kg/h | 18.5 kW | φ0.8-8 mm | Single layer / Double U type |
| ZD-70+35 | Active / Passive pay-off | φ70 mm | 26:1 | 160 kg/h | 37 kW | φ1.5-12 mm | Single layer / Double U type |
| ZD-80+40 | Active / Passive pay-off | φ80 mm | 26:1 | 220 kg/h | 55 kW | φ2-18 mm | Single layer / Double U type |
| Capstan Power | Accumulator Type | Production Speed | Take-up Type | Loop Formation | Electrical Control |
|---|---|---|---|---|---|
| 4 kW | Inclined / Horizontal | Max 500 m/min | Double-axis axle-mounted / bundle | Automatic looping | Frequency control + PLC control |
| 4 kW | Horizontal | Max 450 m/min | Double-axis axle-mounted / bundle | Automatic looping | Frequency control + PLC control |
| 4 kW | Horizontal | Max 400 m/min | Double-axis axle-mounted / bundle | Automatic looping | Frequency control + PLC control |
| 5.5 kW | Horizontal | Max 350 m/min | Shaftless double bobbin bonding | Automatic looping | Frequency control + PLC control |
Product Advantages
As a core solution in the Extrusion Production Line Series, this production line offers high-speed operation with excellent extrusion stability, ensuring uniform insulation thickness and high electrical performance of automotive wires. The intelligent PLC control system reduces manual intervention and improves production efficiency. Energy-efficient motors and optimized heating zones help lower energy consumption and operating costs. The modular design allows flexible configuration to meet different wire specifications and production requirements. Additionally, the system is manufactured in compliance with international automotive and industrial standards, ensuring reliability for global markets.
