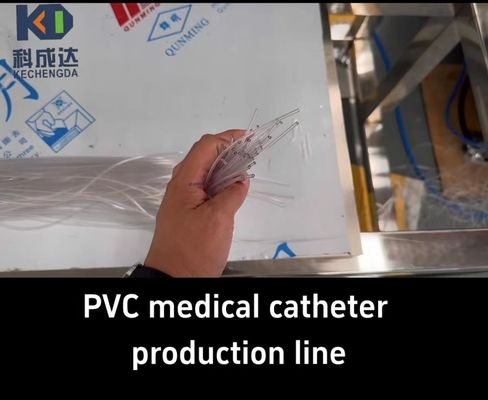

PVC Medical Catheter Production Line Soft PVC Infusion Tube Machine For Catheter Infusion Tube

Place of Origin Qingdao,Shandong,China
Brand Name Kechengda
Model Number SJ35
Minimum Order Quantity 1 set
Packaging Details wrapping film
Delivery Time 50 workdays
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

Soft PVC medical catheter production line

,

PVC medical catheter production line

,

Soft PVC Infusion Tube Machine

Leave a Message
Product Description





                                            Production Describe

PVC medical catheter production line Soft PVC infusion tube machine equipment High precision catheter infusion tube production line

Plastic hose extruder combined with different materials and product characteristics, configuration of the corresponding host and auxiliary machinery, suitable for a variety of materials, a variety of specifications of pipe, shaped material products.
The targeted professional design of the screw ensures the high-speed withdrawal of the main engine and good stability and plasticizing effect.
Vacuum sizing type forced water cooling system to ensure the accurate shaping of products.
The belt type synchronous tractor adopts imported surface foam multi-wedge belt drive to adapt to the stable operation of various speeds.
The double-station winder without stopping the changing disk adopts the synchronous tension control of winding and wiring, and the arrangement is orderly and smooth.



The extrusion screw of this equipment adopts the optimized design of Japanese extrusion process, which can adapt to the processing of PU materials with high heat sensitivity, excellent fluidity and high melt viscosity, and meet the high speed and stable output under the premise of ensuring good plasticization.

Production process:
Extrusion machine - mold - vacuum setting cooling water tank - belt tractor - winder
1, the main machine adopts hard gear reducer transmission, screw cylinder adopts nitriding alloy steel (38CrMoALA) or quenching alloy steel (9Cr18MoV), the main machine drive adopts AC frequency conversion controller, no oil, low noise; Temperature controller adopts intelligent temperature control meter, temperature control accuracy reaches ±1℃;

2. The main body of stainless steel cooling sink is made of imported SUS304 material; The sink frame adopts screw elevator device, which can be adjusted up and down, and the operation is very convenient; Then equipped with stainless steel water storage tank, cooling water can be recycled without splashing wetland surface;

3, the tractor adopts high-precision ball guide guide system, monofilm center high adjustment, tensioning adjustment, high-wear-resistant surface foam PU multi-wedge belt, low inertia multi-wedge belt wheel, high efficiency, high-precision worm gear reducer transmission, high-precision variable frequency motor drive, variable frequency controller, traction speed stepless adjustable

4, the winding machine adopts Delta inverter speed regulation, so that the production speed reaches the ideal state

Applicable materials: PU, TPU, PE, TPE, PP, PVC, PA



Pre-sale service:
To help customers do market research, make project planning, and production line matched requirements analysis.


After-sale service:
One year warranty, life-long maintenance;
24 hours online for technical consulting service;
Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.



FAQ:

Q: How do you quote for customers?
A: The price depends on the quality and performance, but customer satisfaction is the first priority.


Q:What's your guarantee or the warranty of the quality if we buy your machines?
A:We have one year warranty of the spare parts free of charge. If any quality problems on our side occured in this period ,we will can do some replacement.



Q: If we don't find what we need from your website , What should we do ? Do you make extrusion lines as per customers' specific requirement?

A: Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements by email.
