pvc wood plastic composite door panel making machine /wpc profile production line

Place of Origin Qingdao,Shandong,China
Brand Name Kechengda
Model Number SJSZ-92/188
Minimum Order Quantity 1
Price USD 65000~100000
Packaging Details wrapping film
Delivery Time 35 work days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Screw Design Double-screw Condition New
Plastic Processed WPC Application PVC Door Board Pane
Place Of Origin Shandong, China Weight 10T
Warranty 1 Year Voltage Customized
Dimension(L*W*H) CAPACITY After-sales Service Provided Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Overseas Service Center Available
Name PVC WPC Door Board Extrusion Line Raw Material PVC Resin
Other Name PVC WPC Hollow Door Panel Production Line Automatic Grade Fully Automatic
High Light

pvc panel making machine


wood plastic composite panel making machine


profile production line panel making machine

Leave a Message
Product Description

Product Application

bamboo and plastic composite plate/board Production Extruder Machine is mainly used for making PVC plastic profile with different section shape and height. the surface of PVC profile/panel can be treated by printing & coated with glossy oil, or by heat transfer printing, or by lamination, which can make good decoration effect for kitchen,toilet,balcony and so on.


Features of the Machine:
1)Extruder screw and barrel from Zhoushan,with vacuum degassing system, can get rid of the waste gas from the raw material which can ensure good quality of final granules.
2) Gearbox: From Jiangyin gearbox company,very famous brand in China,with nice outline, stable running, low noise and long service time.
3) Heating system: adopting cast aluminum heaters with stainless steel plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4) Driving system: adopting Siemens motor, using ABB inverter which provide stable torque output and various speed.
5) Vacuum calibrating and cooling Table: the tabley is made by #304 stainless steel, good strength and performance,long life time.
6) Traction machines:Rubber block traction belt,traction speed is adjustable by ABB frequency inverter.
7) Cutting machine: saw blade cutting,low noise,quick cutting performance,with dust collection device.


Main Machine Flow Chart

Screw Loader for Mixer---High Speed Mixing Unit---Screw Loader for Extruder---Conical twin screw extruder---Mold---Vacuum calibration machine---Traction Machine---Cutting Machine---Stacking Table
Machine Name
Screw Loader for Mixer
SRL-Z serious High Speed Mixing Unit
Screw Loader for Extruder

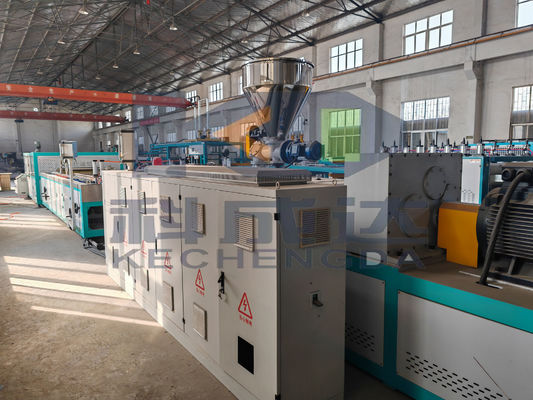

SJSZ serious Conical Twin Screw Extruder

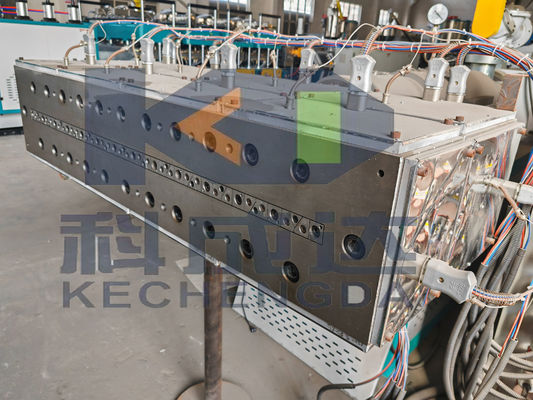

Mold head+Calibration forming mold

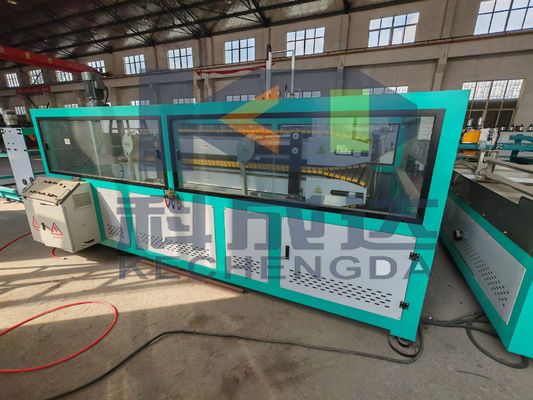

Vacuum Calibration Machine
Traction Machine
Cutting Machine
Stacking Table



Our Services


pvc wood plastic composite door panel making machine /wpc profile production line


Pre-Sales Service

* We given client the details technician offer.
* Professional advice for Inquiry and technical support.
* supply the details layout, installation instruction, technician support for the clients
* Free Machine testing support.
* View our Factory,sales manager accompany.
* 24 hours English support.


After-Sales Service

* We arrange engineer to install the machinery and training the workers for client abroad if clients required.
* We have 24 hours team to solve problems after sales.
* We have free spare parts with the right machine during warranty time.
* We supply whole machine lifetime spare parts for every customer with low cost after warranty time.
* We always up date the new technology to every customer.
