PVC Plastic Profile Ceiling Panel Production Line /Double Screw Extrusion Making Machine

Place of Origin Qingdao,Shandong,China
Brand Name Kechengda
Model Number SJSZ-80/156
Minimum Order Quantity 1
Price USD 50000~90000
Packaging Details wrapping film
Delivery Time 35 work days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Screw Design Double-screw Condition New
Plastic Processed PE, PP, PVC, PE/PP Application Bar, PIPE, Granules, Profile
Weight 4500 Warranty 1 Year
Key Selling Points Automatic Applicable Industries Hotels, Building Material Shops
Video Outgoing-inspection Provided Warranty Of Core Components 1 Year
Core Components Motor Machinery Test Report Provided
Screw Diameter (mm) 65 Mm Screw Speed (rpm) 225 Rpm
After-sales Service Provided Field Installation, Commissioning And Training After Warranty Service Online Support
High Light

PVC Ceiling Panel Production Lin

,

Double Screw Extrusion Making Machine

Leave a Message
Product Description

PVC Ceiling Panel Extruder Machinery/Wall Panel Production Line

Description of PVC ceiling wall panel production line:

PVC ceiling wall panel production line is mainly used to produce PVC ceiling, PVC wall panel with width of 200mm,250mm,300mm with different section shape and height. The surface of PVC ceiling can be treated by double color printing and coated with glossy oil, or by heat transfer printing, or by lamination, which can make marble, wooden design on the surface of products.

Main Advantages of this making machine:

1. Speed controlled by inverter, saving power and easy to adjust speed.

2. Extruder temperature controlled by Omron intelligent controller, temperature fluctuation is self adjusting.

3. Low power consumption: power consumption of total production line can low to only 25kw/hour.



The working process of PVC ceiling machine:

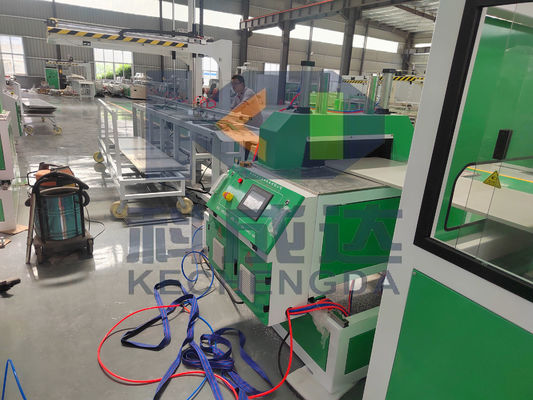

Raw material → screw feeder mixing → feeder → double screw extruder → vacuum calibration table → haul-off unit → cutting machine stacker



Equipment List of PVC ceiling wall panel production line:

Item
Machine name
Unit
1

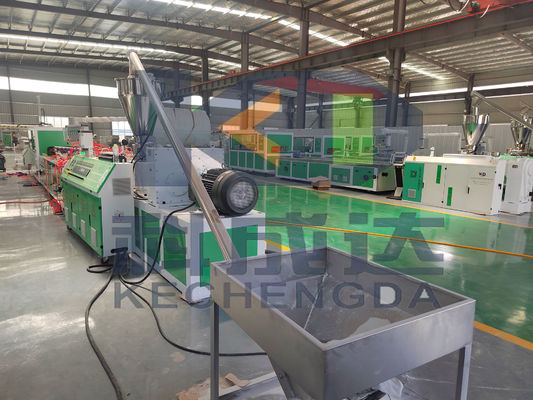

Auto-loader
1 set
2
Conical Twin Screw Extruder
1 set
3

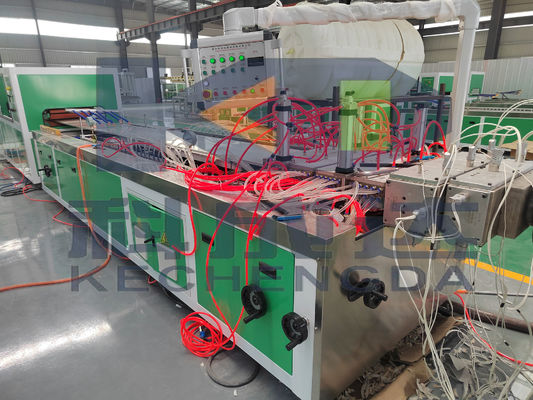

Vacuum Calibrating Platform
1 set
4
Haul-off Machine
1 set
5
Stacker
1 set
6
Mold(according to the drawing)
1 set
