PVC window profile extrusion line/ PVC profile production line / plastic machinery

  • PVC window profile extrusion line/ PVC profile production line / plastic machinery
  • PVC window profile extrusion line/ PVC profile production line / plastic machinery
  • PVC window profile extrusion line/ PVC profile production line / plastic machinery
  • PVC window profile extrusion line/ PVC profile production line / plastic machinery
  • PVC window profile extrusion line/ PVC profile production line / plastic machinery
  • PVC window profile extrusion line/ PVC profile production line / plastic machinery
Place of Origin Qingdao,Shandong,China
Brand Name Kechengda
Model Number SJSZ-65/132
Minimum Order Quantity 1
Price USD 26000~60000
Packaging Details wrapping film
Delivery Time 35 work days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Screw Design Double-screw Condition New
Plastic Processed PVC Application Strap Band
Weight 18T Warranty 1 Year
Key Selling Points Automatic Applicable Industries Manufacturing Plant
Video Outgoing-inspection Provided Warranty Of Core Components 1 Year
Core Components Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw Machinery Test Report Provided
Screw Material 38CrMoALA Screw Speed (rpm) 75 Rpm
Voltage 380V Or Customized Dimension(L*W*H) 18*4*2.8M
After-sales Service Provided Engineers Available To Service Machinery Overseas Automatic Grade High Automation
Leave a Message
Product Description
Product Description

PVC profile extrusion line/ PVC profile production line / PVC profile making machine/ plastic machinery

Feature of pvc profile extrusion line

The profile is a new environmental product,mixed the plastic ,wood and appropriate auxiliary. It is widely used for product carrier, packaging box, frame of window&door, decorating board and other outdoors product.



The production line has many advantages:material thawing even,lesser cut-speed,high output,longer life and etc.the production line including extruder,calibrator unit,haul-off unit,film-covering machine,stacking unit and etc.

This PVC profile extrusion line can also be used as PVC wood foaming profile extrusion line

Constituent of pvc profile extrusion line

1,Conical Twin screw designed ,barrel, die-head for board

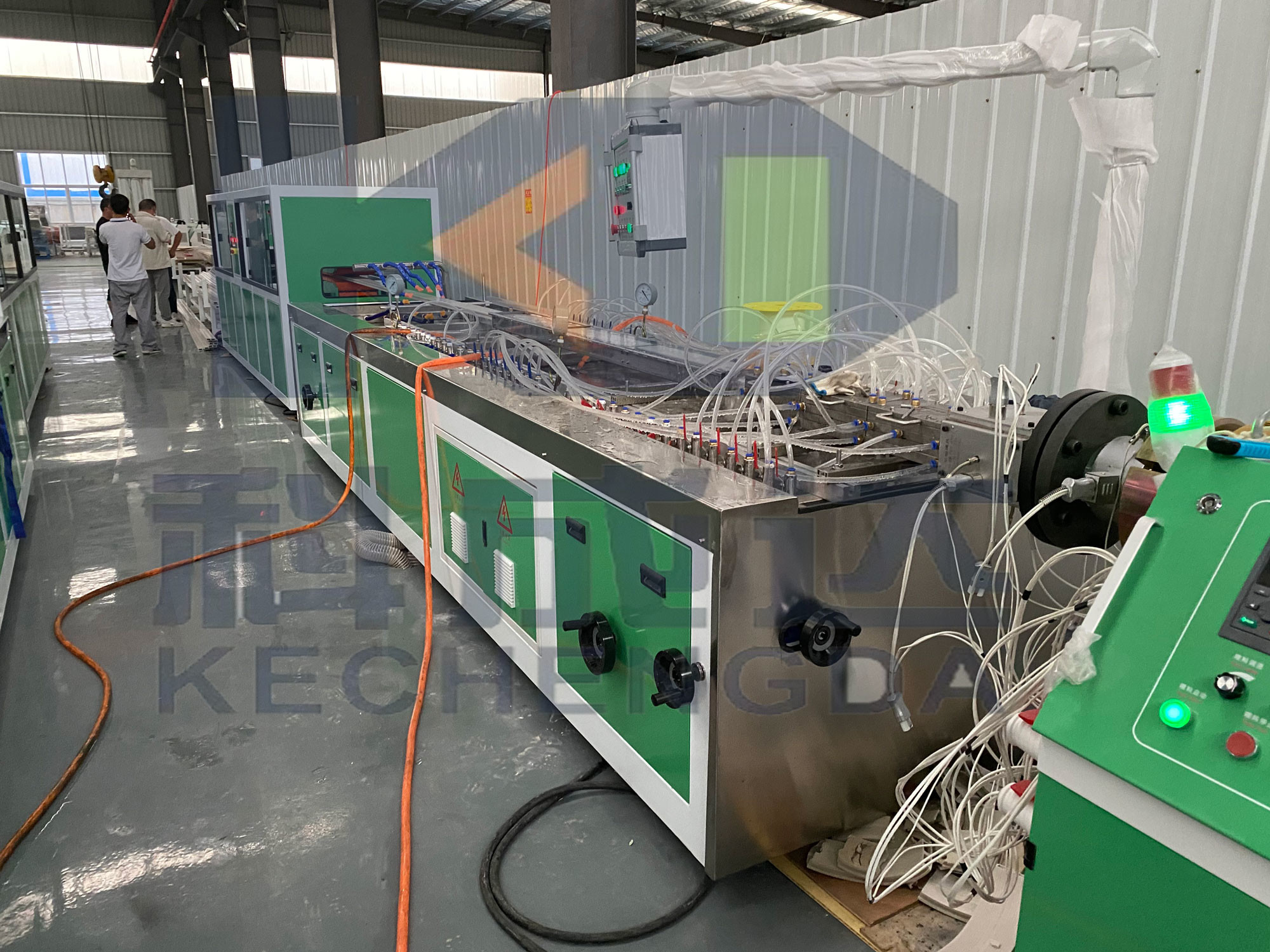

2,sizing platform;

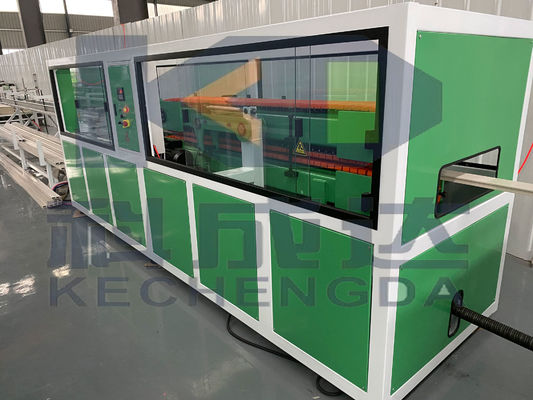

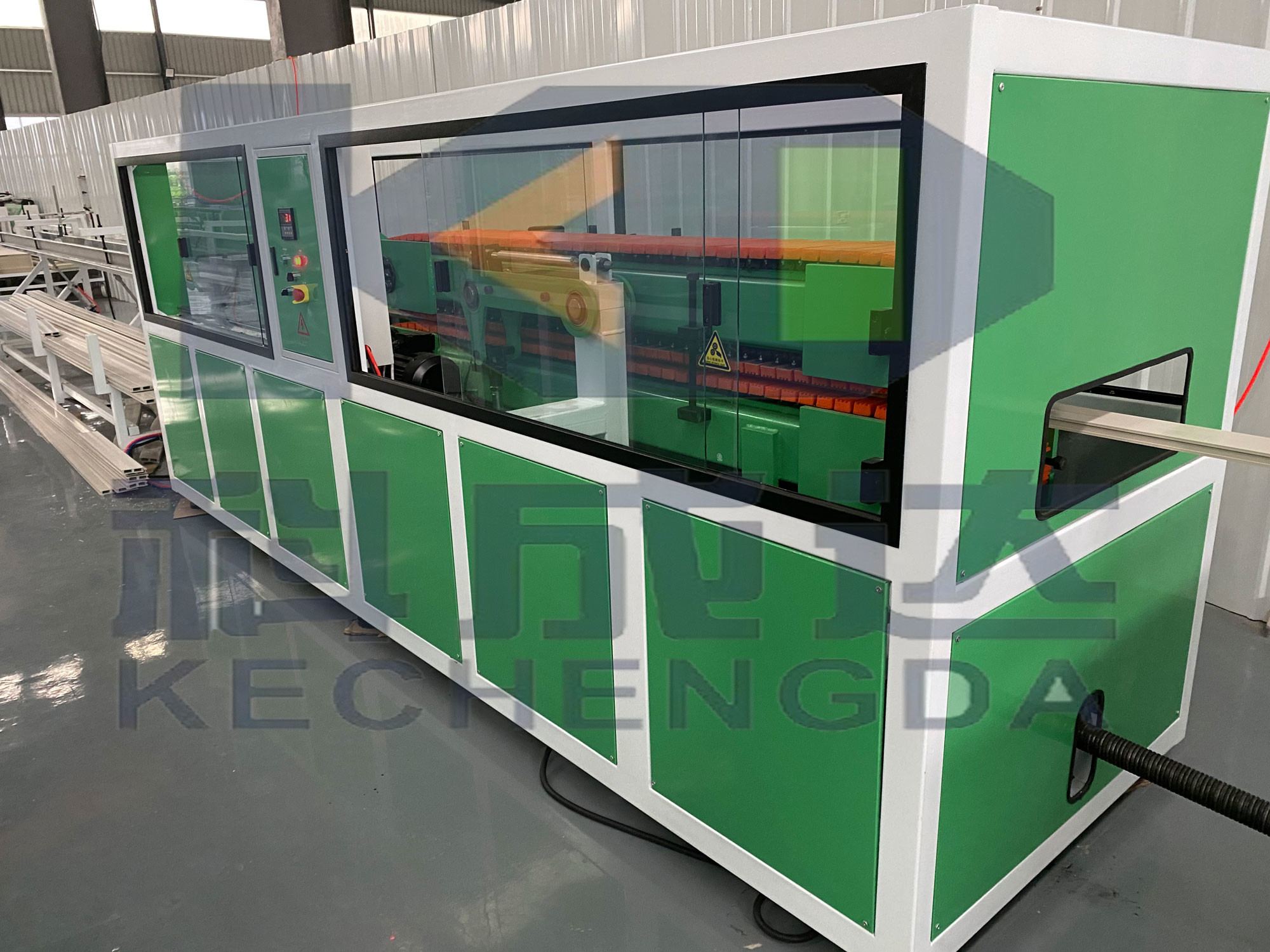

3,Haul-off Machine;

4,Cutter;

5,Stacker;

6,Auxiliary machine:Mixing machine,crusher,miling machine;

The main technical data:

mode KFYYZ-180 KFYYZ-240 KFYYZ-300
max.width(mm) 180 240 300
auxiliar power(kw) 18.7 27.5 33.1
cooling water capacity(m3/h) 5 7 7
air pressure(MPa) 0.6 0.6 0.6

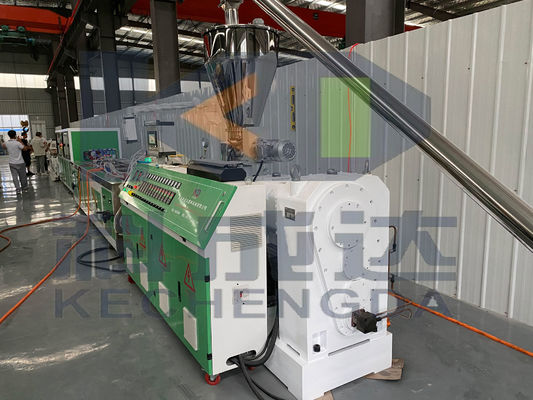

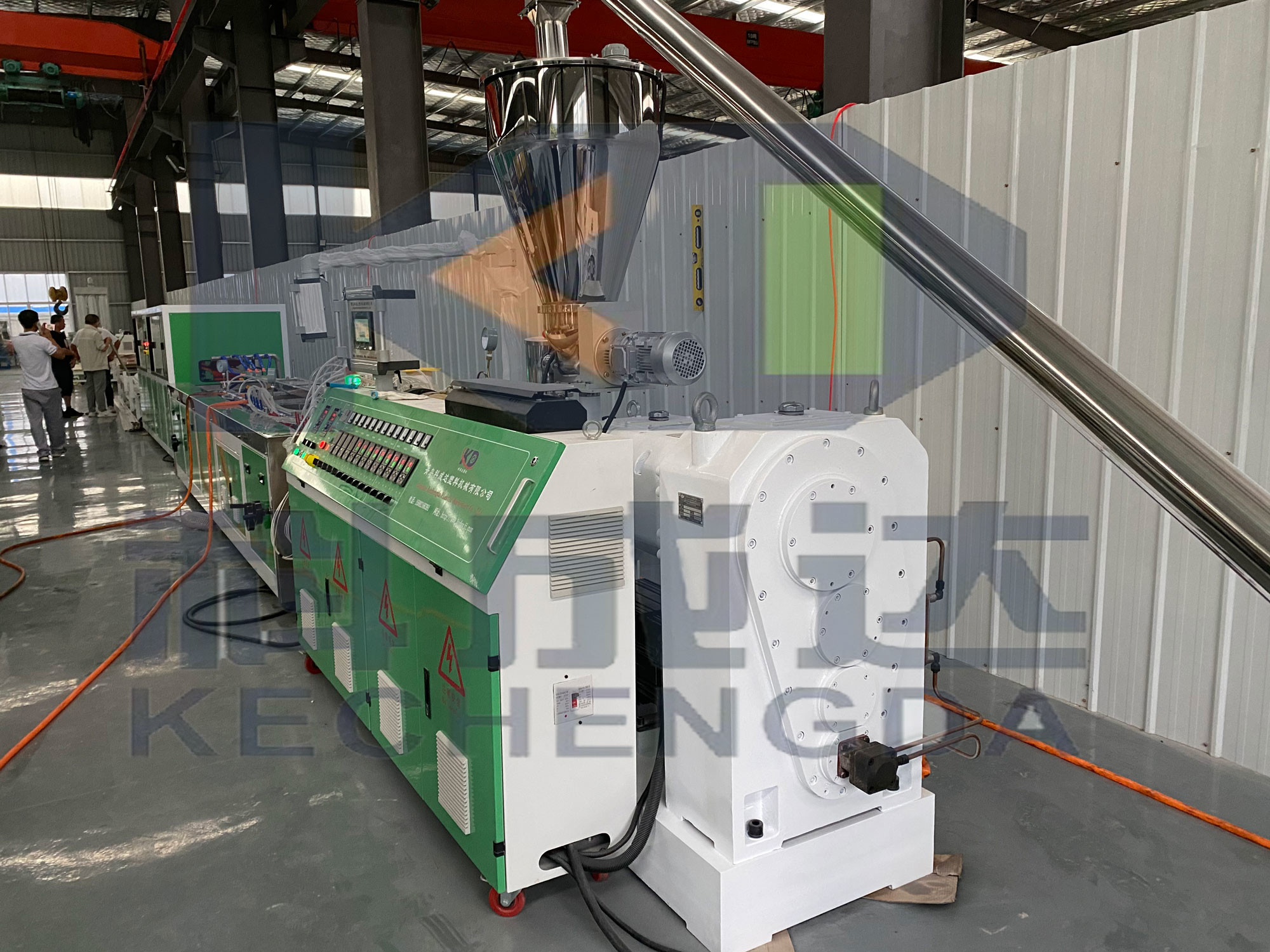

Conical Twin Screw Extruder of pvc profile extrusion line
