High Efficiency PVC Wood Plastic Door Cover Production Line

Place of Origin Qingdao,Shandong,China
Brand Name Kechengda
Model Number SJSZ-51/105,65/132,80/156
Minimum Order Quantity 1
Price usd 31000-100000/set
Packaging Details wrapping film
Delivery Time 35 work days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Screw Design Double-screw Plastic Processed PVC+WOOD
Key Selling Points Long Service Life Applicable Industries Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Voltage 3P/30V/50HZ Or As Local Raw Material PVC/WPC
High Light

PVC Wood Door Cover Extruder

,

Door Cover PVC Panel Extruder

Leave a Message
Product Description

High-Efficiency PVC Wood Plastic Door Cover Production Line

The Pvc wood plastic door cover production line is an automated production equipment used to manufacture PVC wood plastic door covers. PVC wood plastic door cover is a type of door cover that uses polyethylene (PVC) and wood powder as the main raw materials, combining the appearance of wood and the advantages of plastic. It has the characteristics of waterproof, anti-corrosion, and good weather resistance. The following is a basic introduction to the general PE wood plastic door cover production line:

1. Raw material preparation: The first step of the production line is to prepare the raw materials required for the manufacturing of PVC wood plastic door covers, mainly including polyethylene (PVC particles, wood powder, additives, etc. These raw materials are usually mixed in a certain proportion through a batching system.

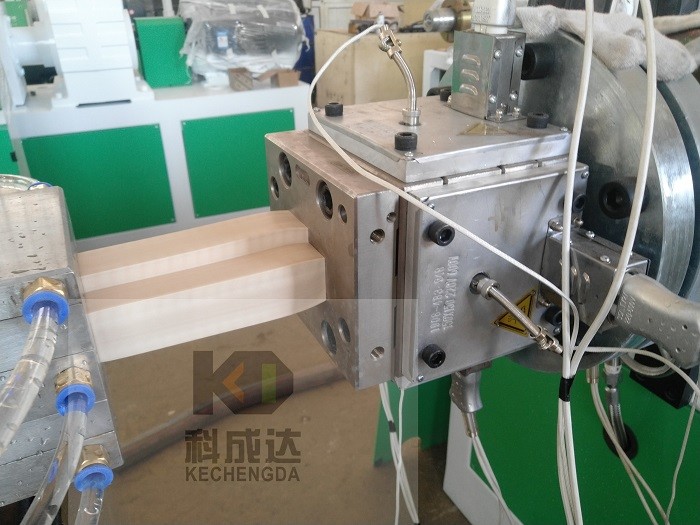

2. Mixing and extrusion: The mixing process sends raw materials into the mixer for thorough mixing, ensuring uniform distribution of various additives and particles. Then, the mixed material is fed into the extruder, and through the process of heating and extrusion, the material is extruded into the desired door pocket shape.

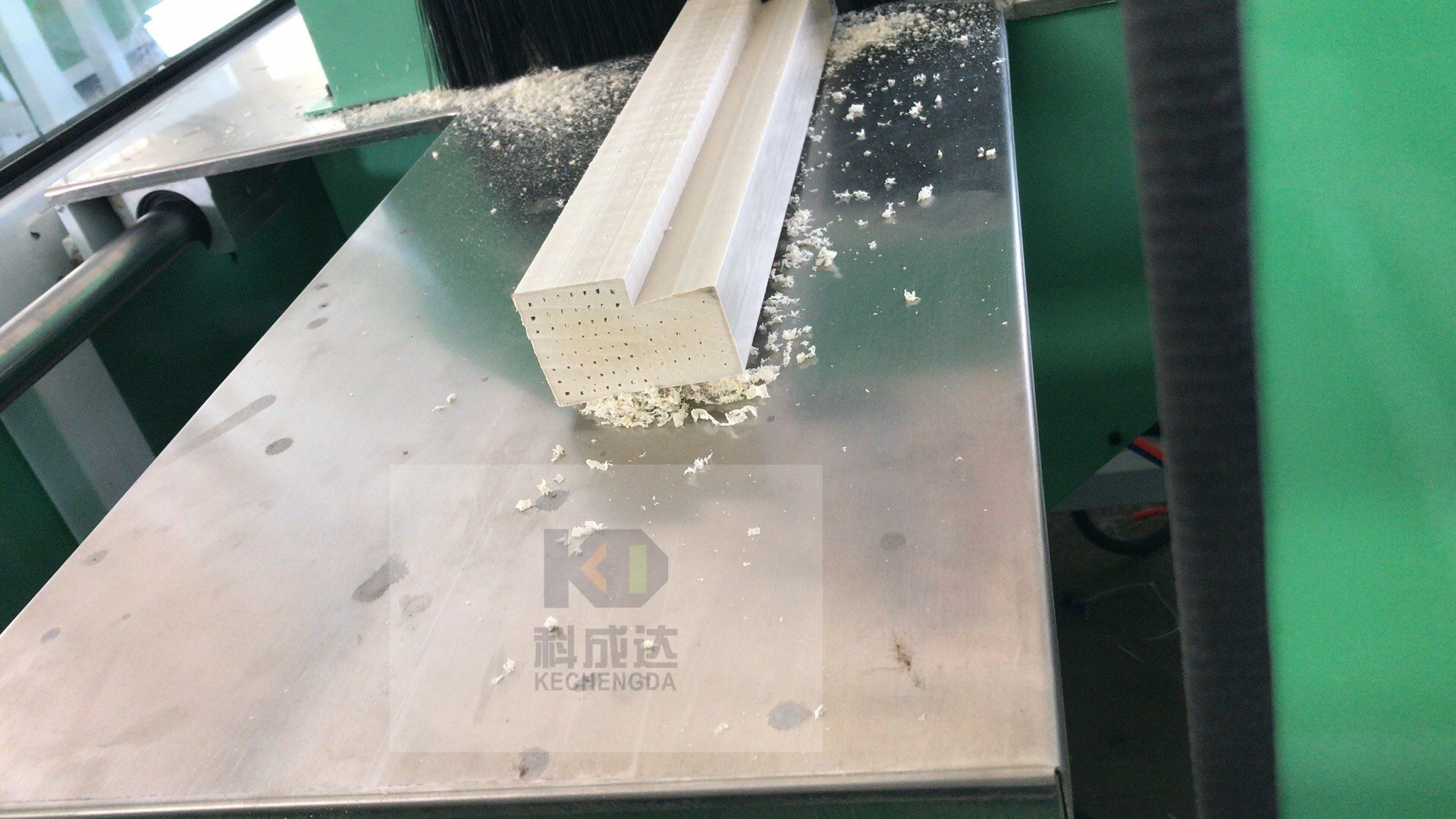

3. Cooling and cutting: The extruded PVC wood plastic door pocket enters the cooling device through a conveyor belt or roller, allowing it to quickly cool and solidify. Then, the door pocket is cut to a certain length through a cutting machine to obtain the required length.

4. Inspection and packaging: The final step of the production line is to conduct quality inspection and packaging of the finished product. Conduct tests on the size, appearance, and weather resistance of the door cover to ensure that the product meets quality standards. Then, the door pocket is usually packaged in a form suitable for transportation and storage.

Equipment model Main motor power Extrusion capacity Total installed power
SJSZ-51/105 22KW 80-150KG/H 55KW
SJSZ-65/132 37KW 220-280KG/H 80KW
SJSZ-80/156 55KW 350-400KG/H 110KW

It should be noted that different pvc wood plastic door cover production lines may have some differences, and the specific production line configuration and process flow may vary. In addition, some production lines may integrate automated control systems to improve production efficiency and product quality.

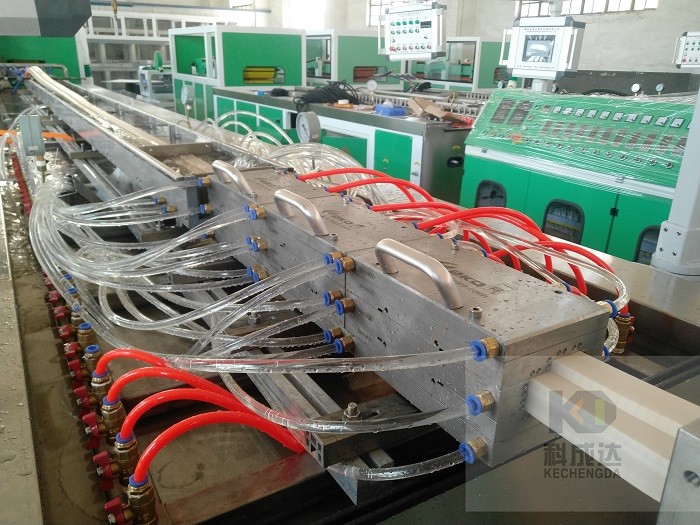

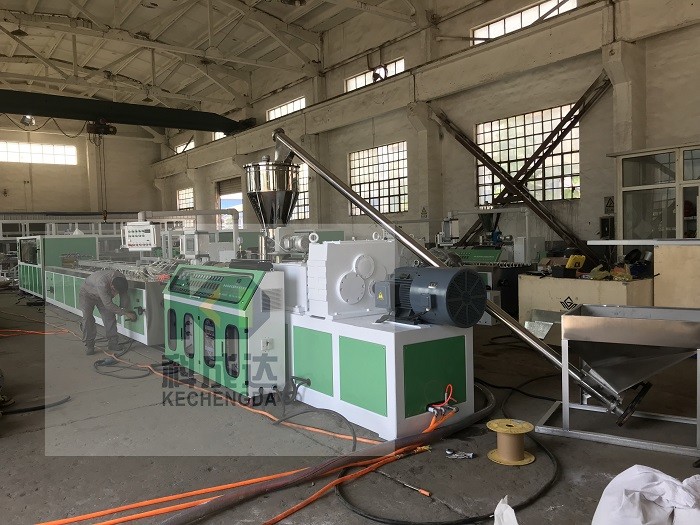

High Efficiency PVC Wood Plastic Door Cover Production Line 0High Efficiency PVC Wood Plastic Door Cover Production Line 1High Efficiency PVC Wood Plastic Door Cover Production Line 2

WPC PVC door making machine turnkey project service
1, we will provide all the machines for the complete production according to customer's requirements.
2, we will provide complete service for factory layout and other informations to help customer to build the factory.
3, we can also provide the raw material to the customer if you need.
4, we will provide good service for machine installation and trainning, until the customers can run the machines and make stably production.
5, Except one year quality guarantee,we will provide after-sell service for all the life.
6, for long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. let us do win-win business together.
