Integrated PVC Panel Production Line Fireproof Wall Panel Production Line 300-400kg/Hr

Place of Origin Qingdao,Shandong,China
Brand Name Kechengda
Model Number KCD-SJSZ65
Minimum Order Quantity 1
Packaging Details wrapping film
Delivery Time 35 work days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Plastic Processed PVC Feeding Mode One Feed
Screw Twin-Screw Screw Channel Structure Deep Screw
Automation Automation Topal Power 90kw
Main Motor 37kw Capacity 180-250kg/H
High Light

Integrated PVC Panel Production Line

,

PVC Panel Production Line 300kg/hr

,

wall panel production line 400kg/hr

You can tick the products you need and communicate with us in the message board.
Transport Package Container
Specification 25*1.5*2.5
Origin Qingdao China
Trademark Qingdao kechengda
Leave a Message
Transport Package Container
Product Description

KCD-SJSZ65 PVC Integrated Wall Panel Production Line PVC Panel Production Line



    PVC WPC wall panel line can be used to produce 300mm-600mm wide WPC wall panel.WPC wall panel is mainly made of PVC resin powder,calcium powder andwood powder, without any paint use ,thus achieving a real "zero formaldehyde ,sound insulation,environmental protection."
    PVC integrated wall panels can be used as decorative wall panels, partitions, door and window frames, etc., and are widely used in the decoration of hotels, teaching buildings, commercial buildings, kitchens, and bathrooms. It is an excellent substitute for traditional wall decoration materials.


Features of PVC integrated wall panel:
1. Convenient installation, the snap-fit assembly method makes the seams tighter and smoother, which overcomes the shortcomings of large seams of other materials and unevenness after installation.


2. It adopts a hollow structure and a small heat transfer coefficient, which is only one-thousandth of that of aluminum. The heat preservation effect is remarkable, especially for air-conditioning environments.

3. The formula has good corrosion resistance and can be used in humid environments.

4. Fire-resistant and flame-retardant, and pass the fire-proof test.

5. Strength, resistance to discoloration, and aging resistance for 30 years.

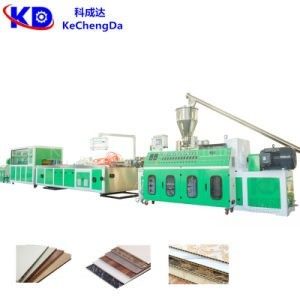

The equipment is composed of SJSZ twin-screw extruder, sizing table, tractor, cutting machine, and automatic pusher. It is controlled by PLC microcomputer and has the characteristics of high automation, good plasticization effect, and high output.


Performance and characteristics:
1. Develop an automatic system for the lack of material in the feeder bin. The feeder has an overload protection system.


2. Use imported electrical control systems such as Yaskawa or Sino-foreign joint venture Zhongcheng inverters, Omron temperature control meters, French Schneider contactors, relays, etc., Wafangdian bearings, German imported oil seals, gearboxes and other mechanical transmission systems, traction The rubber block of the machine adopts high-quality, anti-aging rubber block, and the tractor has a protective baffle.

3. The barrel screw adopts a new design concept, with many years of experience in the industry, and according to the different recipe ranges of customers, different screw designs are used to achieve high-quality extrusion process conditions.

4. Provide information and information on extrusion technology of the entire industry.

Production process and equipment composition
a.Conical twin extruder

b.Mould
c.Vacuum calibration table
d.Hualing off
e.Cutting device
f.Manipulation stacker


Applied materials
PVC powder, Carbon calcium,PVCaddictives ect.

The technical specification
Model Width Main Motor Production capacity Total Power
KCD-SJSZ65 300-600mm 37KW 180-250kg/h 90KW
KCD-SJSZ80 600-800mm 55KW 300-400kg/h 140KW

TRADE TERMS
♦Delivery time: 40 working days from down payment receipt
♦ Packing: Sea-worthy package mainly with wood pallets, film and some parts in wooden case.
♦ Payment: 30% as advance payment by T/T after signing contract;
70% as balance after inspection machine before delivery by T/T
♦ Warranty: 12 month
♦ Validity: 30 days

After-sale service
One year warranty, life-long maintenance;
24 hours online for technical consulting service;

FAQ
Q:Are you a trading company or a manufacturer?
A:We are a manufacturer and we can assure the quality of our machine.

Q:What's your guarantee or the warranty of the quality if we buy your machines?
A:We have one year warranty of the spare parts free of charge. If any quality problems on our side occured in this period ,we will can do some replacement.

Q:How can I install my machine when it arrives?
A:We will send the instruction manual and videos to you,your workers can install the machine accorded as it.If you still have problems in installing it and need our engineer to help,we will arrange our engineer to debugging the machine for you.At same time our engineer will give training lessons to labors in your factory.


Q:How about the spare parts?
A:During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If it is caused by your incorrect operations, we will provide the spare parts at cost price
