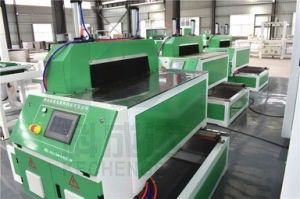

120 - 650kg/H PVC Panel Making Machine Pvc Profile Extrusion Line For Wall Panel

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPlastic Processed | PVC | Feeding Mode | Multiple Feed |
---|---|---|---|
Screw | Twin-Screw | Screw Channel Structure | Deep Screw |
Engagement System | Full Intermeshing | Exhaust | Exhaust |
Raw Material | PVC Powder | ComputerizedComputerized | Computerized |
Color | To Customer′s Requirement | HS Code | 8477209000 |
Highlight | 120kg/h pvc panel making machine,650kg/h pvc panel making machine,pvc profile extrusion line SJSZ65 |
Trademark | Qingdao KCD | |
---|---|---|
Transport Package | Wooden Case |
SJSZ65/132 PVC Ceiling Making Machine/PVC Wall Panel Production Line with High Quality/Plastic Machine
Brief introduction:
Qingdao Kechengda Plastic Machinery Co., Ltd. is a manufacturer specializing in the research and development of PVC integrated wallboard equipment. Our company has professional equipment installation and commissioning personnel, as well as unique product formulas, which can provide customers with one-stop service. The whole production line adopts specially designed screws, barrels, molds and our company's original process formula, which realizes the perfect matching of extruder and mold, vacuum setting table, tractor, cutting machine and other auxiliary machines. The production line adopts automatic control, with high degree of automation, easy operation, high production efficiency, and long service life. By changing molds, customers can produce bamboo and wood fiber integrated wall panels and various decorative lines of various specifications, sizes, shapes, and thicknesses.
Technical data
Model/data | Max width | Extruder model | Motor power | Max capacity |
MT180 | 180mm | MT51/105 | 22kw | 120kg/h |
MT240 | 300mm | MT65/132 | 37kw | 260kg/h |
MT600 | 600mm | MT80/156 | 55kw | 400kg/h |
MT800 | 800mm | MT92/188 | 90/100kw | 650kg/h |
Work flow and detailed information:
Feeder | • To feed material into extruder; |
Extruder | •World famous brand electrical component: Siemens, Schneider, ABB etc; • High torque gearbox with adopts NSK/SKF bearing; • Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface. |
Die head | • 3Cr13/3Cr17 material • Complete set include extrusion die head, calibrator and cooling tank • Adopt to single, co-extrusion, foam imitation marble profile |
Calibration table | • Include full set of vacuum and water pump • Width: 240mm • Length: 6000mm • Independent operation panel for easy operation |
Haul off | • Upper/lower caterpillar driven separately and speed control by inverter • Fast change type pads for easy operation • Install plate is adopts aluminum material |
Cutter | • Lifting saw cutter with adopts double station dust collection system •Synchronous drivingby air cylinder or servo motor control |
Stacker | • Stainless steel304 as touching material • Discharge driving by air cylinder |
Hot stamping machine | • Decorative pattern and film protection of product surface |
TRADE TERMS
♦Delivery time: | 40 working days from down payment receipt |
♦ Packing: | Sea-worthy package mainly with wood pallets, film and some parts in wooden case. |
♦ Payment: | 30% as advance payment by T/T after signing contract; 70% as balance after inspection machine before delivery by T/T |
♦ Warranty: | 12 month |
♦ Validity: | 30 days |
After-sale service
One year warranty, life-long maintenance;
24 hours online for technical consulting service;
Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.
