1600mm 1250mm Double Twist Stranding Machine With PLC Touch Screen Control
|
1600mm 1250mm Double Twist Stranding Machine With PLC Touch Screen Control
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Fit For Bobbin:
Diameter 1000mm
Machinetype:
Twisting Machine
Max Speed:
500rpm
Color:
Sky Blue Or Apple Green
Wire:
PE/PVC Core Wire / Copper Wire
Motorpower:
2.2 KW
Twistingcapacity:
Up To 10 Wires
Application:
Wire Twisting, Cable Manufacturing
Comrol:
PLC+Touch Screen
Maximum Stranding Speed:
Up To 800 M Per Minute
Highlight:
1600mm double twist stranding machine
,1250mm double twist stranding machine
,500rpm stranding machine
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description

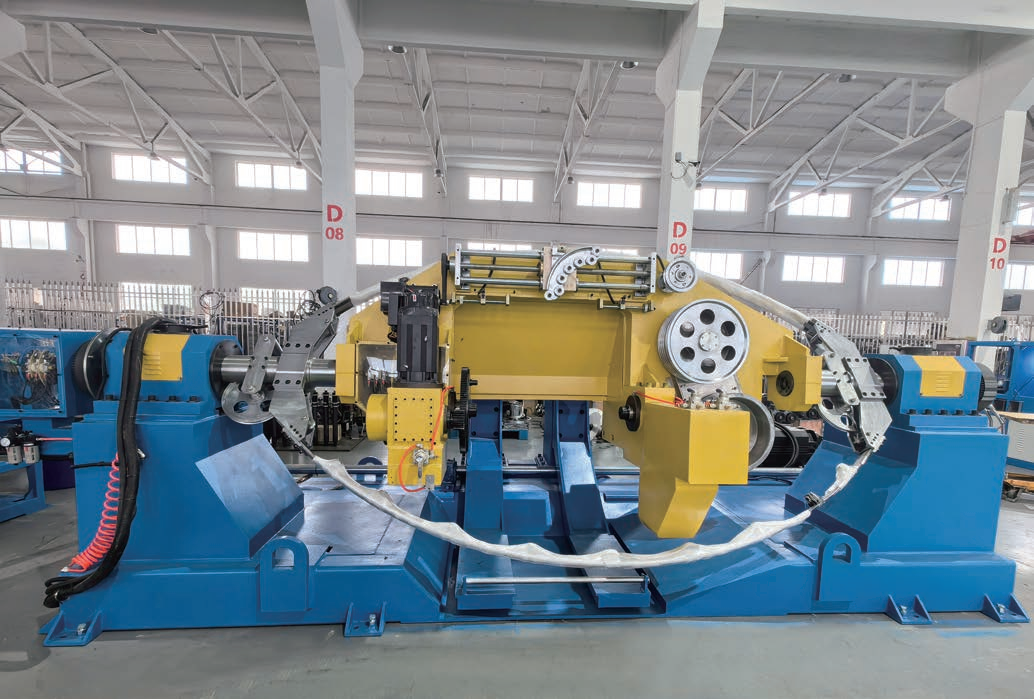

ZD-Φ1250/1600 Double Twist Stranding Machine
The ZD-Φ1250/1600 Double Twist Stranding Machine is engineered for copper wire stranding applications in computer cables, headphone cables, telephone wires, automotive wiring, and network cables.
Technical Features
- Rotary bow constructed from imported carbon fiber, with optional spring steel bow piece for higher load capacity
- Electric lifting platform positioned below ground level for efficient bobbin loading and unloading
- Advanced HMI+PLC control system with computer-preset twisting pitch, direction, and synchronized speed control
Technical Parameters
| Parameter | ZD-ø1250 | ZD-φ1600 |
|---|---|---|
| (AI)/(Cu) Wire Diameter | ø1.0-3.0mm | φ1.0-3.6mm |
| Stranded Section | 3.5-70mm² | 16-90mm² |
| Stranded Section (1+6) | 3.5-50mm² | 16-120mm² |
| Compression Cross Section (CA) | 3.5-50mm² | 16-150mm² |
| Compression Cross Section (A1) | 3.5-70mm² | 16-240mm² |
| Maximum Cable Diameter | ø10mm | φ16mm |
| Maximum Compression | 85-90% | 76-97% |
| Maximum Line Speed | 70-150m/min | 170-200m/min |
| Stranded Outer Diameter | ø15mm Max | φ25mm MAX |
| Turning Speed | 800rpm Max | 500rpm Max |
| Winch Range | 40-350mm | 50-600mm |
Product Advantages
This machine delivers exceptional production efficiency combined with consistent stranding quality. Building on proven Single Twist Machine design principles, the ZD-1250/1600 system ensures precise tension balance and uniform twist distribution.
- Low noise operation with reduced energy consumption
- Enhanced durability through optimized transmission system
- Minimized vibration for extended service life
- Simplified operation and reduced maintenance requirements
- Excellent adaptability to various conductor types
- Intuitive control logic for operators familiar with Single Twist Machines
Conclusion
The ZD-1250/1600 Double Twist Stranding Machine represents a reliable, advanced solution for modern cable production. Incorporating efficiency concepts from Single Twist Machine technology, it delivers consistent quality, high productivity, and superior performance, making it an ideal choice for global manufacturing operations.
