1600mm Reel Diameter Precision Wire Laying Machine With 300m/Min Take Up Speed
|
1600mm Reel Diameter Precision Wire Laying Machine With 300m/Min Take Up Speed
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Applicable Cable Outer Diameter:
≤ Φ30 Mm
Take-up Bobbin Size:
PN1000 – PN1600 Mm
Bobbin Width:
750 – 1180 Mm
Take-up Speed:
Max. 300 M/min
Take-up Motor:
11 KW Servo Motor
Cable Laying Motor Power:
850 W Servo Motor
Hoist Motor Power:
AC / 1.5 KW
Clamping Motor Power:
AC / 0.75 KW
Applicable Reel Diameter:
Up To 1600 Mm
Brake System:
Pneumatic Or Electromagnetic Braking
Highlight:
1600mm wire laying machine
,300m/Min wire laying machine
,PN1600mm fiber laying machine
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description

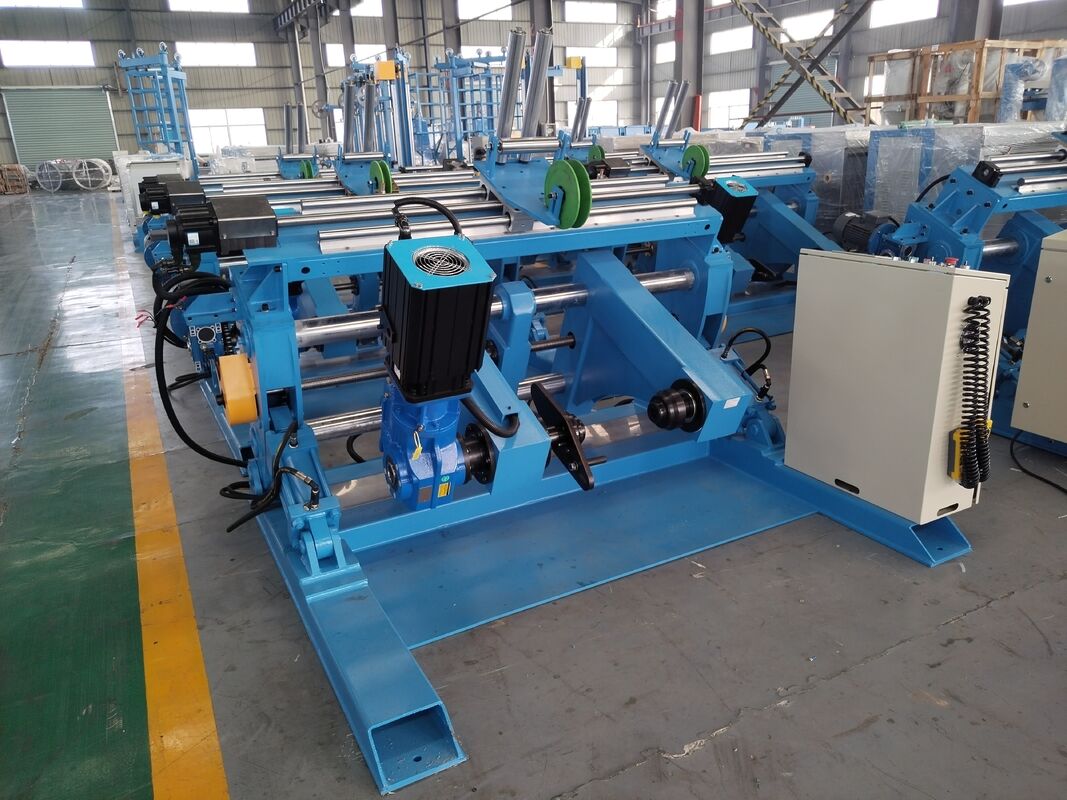

1600 Precision Cable Laying Machine
Technical Features
This equipment is designed for winding various cables and optical cables onto spools with precision and efficiency.
The main structure is constructed from high-quality hollow rectangular steel pipes and steel plate bending parts, welded for maximum durability. The beam incorporates two large precision abrasive rods, resulting in an attractive overall appearance with excellent strength and structural integrity.
The closing frame accommodates clamping, relaxation, and lifting of PN1000-PN2000mm coils. It ensures reliable coil positioning with a lifting mechanism that can operate both sides simultaneously or individually. The bilateral clamping and relaxation structure allows for simultaneous or separate operation, facilitating easy coil handling with adjustable clamping force and overload automatic protection. Upper and lower limits are protected by photoelectric switches.
The main drive system utilizes a servo motor combined with a K-series high-precision reducer. The laying mechanism employs a servo motor with precision ball screw rod for high-accuracy, uniform cable arrangement.
Installation is simplified with no foundation excavation required—only positioning with expansion bolts is necessary.
Applications and Uses
The 1600 Precision Cable Laying Machine is widely used in the wire and cable industry for laying power cables, control cables, communication cables, and industrial cables. It is particularly suitable for applications requiring uniform cable arrangement and stable tension to prevent deformation or surface damage.
As an essential unit of the Wire Laying Machine Series, this machine can be integrated with stranding machines, extrusion lines, testing equipment, and packaging systems. It is ideal for medium and large-scale production facilities serving international infrastructure, energy construction, and industrial automation markets. Manufacturers worldwide rely on the Wire Laying Machine Series to improve downstream processing efficiency and product appearance.
Technical Parameters
| Item | Specification |
|---|---|
| Machine Model | 1600 Precision Take-up & Laying Machine |
| Applicable Cable Outer Diameter | ≤ Φ30 mm |
| Take-up Bobbin Size | PN1000 - PN1600 mm |
| Bobbin Width | 750 - 1180 mm |
| Take-up Speed | Max. 300 m/min |
| Take-up Motor | 11 kW Servo Motor |
| Cable Laying Motor Power | 850 W Servo Motor |
| Hoist Motor Power | AC / 1.5 kW |
| Clamping Motor Power | AC / 0.75 kW |
| Take-up Control System | Servo drive + human-machine interface + PLC control; supports single movement and linkage modes; automatic PLC control with Ethernet interface |
| Winding Displacement System | Servo motor with precision ball screw; automatic line direction switching, smooth cable laying |
Product Advantages
- Excellent Laying Accuracy: Advanced tension control system ensures smooth cable placement without overlapping, twisting, or surface damage
- High Operational Stability: Reinforced structure minimizes vibration and wear for long-term continuous operation
- Intelligent Control System: Easy parameter adjustment and real-time production monitoring reduces labor intensity
- Flexible Operation: Adaptable to different cable types and production speeds for diverse manufacturing environments
- Energy Efficient: Reduces operating costs while maintaining high productivity
- Low Maintenance: Designed for minimal maintenance requirements and reliable performance
Global Market Value
Designed in accordance with international manufacturing standards, the 1600 Precision Cable Laying Machine is suitable for cable producers worldwide. As a dependable solution within the Wire Laying Machine Series, it helps manufacturers enhance production efficiency, ensure consistent product quality, and strengthen competitiveness in global markets.
This machine is an ideal choice for companies seeking precision, durability, and long-term value in cable laying equipment.
