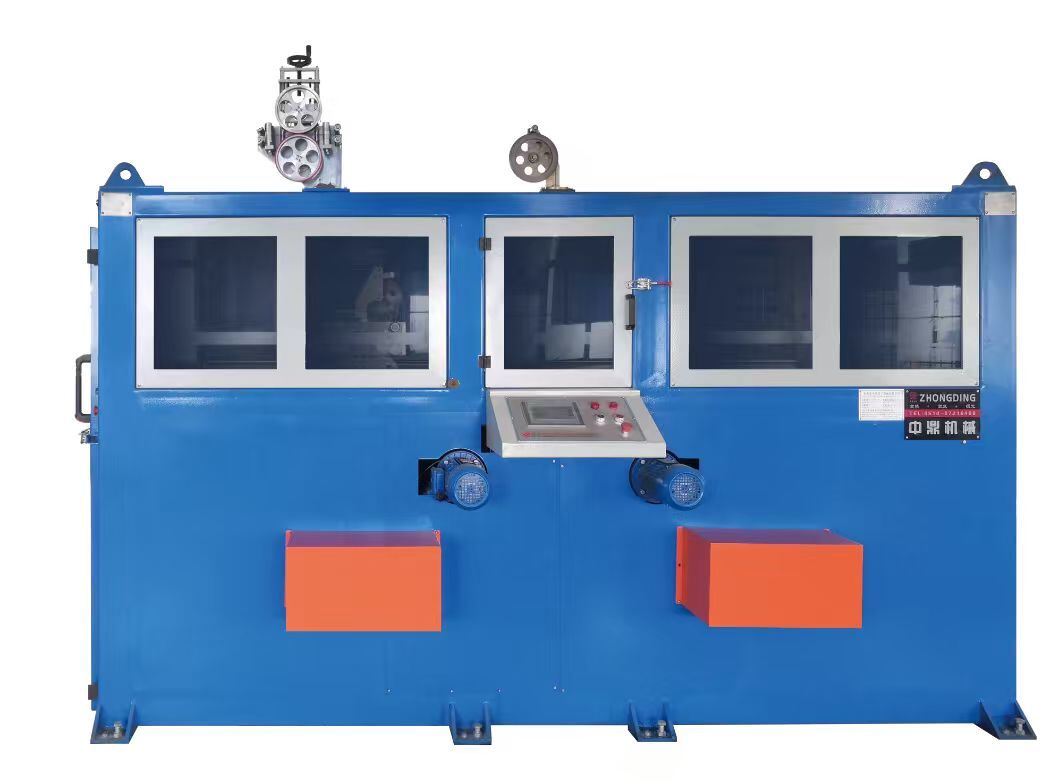

220V 380V Semi Automatic Dual Drum Wire Laying Machine With PLC Control
|
220V 380V Semi Automatic Dual Drum Wire Laying Machine With PLC Control
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Noiselevel:
<75 DB
Powersupply:
220V/380V, 50Hz
Material:
High-grade Steel
Application:
Cable Manufacturing, Electrical Wire Laying
Machinetype:
Automatic
Motorpower:
2.2 KW
Controlsystem:
PLC Control
Dimensions:
1500mm X 800mm X 1200mm
Wirediameterrange:
0.5mm - 10mm
Layingspeed:
0-30 Meters/min
Highlight:
220V Wire Laying Machine
,380V Wire Laying Machine
,Semi Automatic cable laying up machine
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description
Dual-Drum Wire Collecting & Laying Machine (Semi-automatic)
The Dual Drum Wire Collecting and Laying Machine Semi Automatic is a highly efficient industrial solution designed for organized wire collection and precise laying during cable and wire manufacturing processes. This advanced wire laying system features a dual drum configuration that enables continuous operation, significantly enhancing productivity while minimizing manual intervention.
Equipped with a semi-automatic control system, operators can precisely manage wire tension, laying speed, and drum switching operations. This ensures stable performance and consistent output quality throughout production cycles. Built for industrial durability, this wire laying machine withstands long-term operation in demanding manufacturing environments.
The compact structural design, smooth wire laying path, and reliable mechanical components make this system an ideal choice for manufacturers seeking improved operational efficiency and reduced labor intensity.
Applications and Uses
This dual drum wire laying machine serves multiple applications across the wire and cable manufacturing industry:
- Cable manufacturing plants and wire drawing facilities
- Electrical wire processing workshops and power cable production lines
- Processing various wire types including copper wire, aluminum wire, insulated wire, and control cables
The system seamlessly integrates with upstream and downstream equipment such as extruders, stranding machines, and testing lines. It ensures organized wire arrangement, prevents tangling issues, and enhances subsequent processing efficiency, making it essential for medium to large-scale wire and cable production operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Type | Dual-Drum Wire Laying Machine |
| Operation Mode | Semi-automatic |
| Applicable Wire Diameter | 0.5-25 mm |
| Maximum Laying Speed | 30-120 m/min |
| Single Drum Load Capacity | 800-2000 kg |
Product Advantages
The dual drum design enables continuous operation by allowing one drum to function while the other prepares for unloading, significantly reducing production downtime. The semi-automatic control system provides optimal balance between automation and manual oversight, offering operational flexibility and cost-effectiveness.
- Ensures uniform wire laying patterns, reducing wire damage and improving finished product appearance
- Stable structural design minimizes vibration during operation
- Precision-engineered components extend service life and reduce maintenance requirements
- Superior efficiency and operational continuity compared to single drum alternatives
Conclusion
With reliable performance, flexible configuration options, and strong adaptability, the Dual Drum Wire Collecting and Laying Machine Semi Automatic represents an ideal wire laying solution for modern wire and cable manufacturers. This system meets international production standards and is well-suited for customers operating in global markets.
