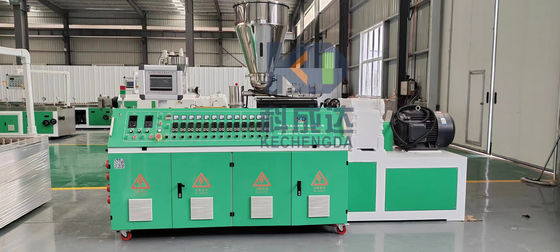

SJSZ Series Conical Twin Screw Extruder / Plastic Twin Screw Extruder

Place of Origin Qingdao,Shandong
Brand Name Kechengda
Model Number SJSZ-50/105 65/132 80/156
Minimum Order Quantity 1
Price USD 20000~40000
Packaging Details wrapping film
Delivery Time 30 work days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Screw Design 30:1 Condition New
Application PVC Processing, UPVC, CPVC Power 55kw 75KW
Screw Material 38CrMoALA Core Components Motor, PLC, Gearbox, Screw
Machinery Test Report Provided
High Light

SJSZ Series Conical Twin Screw Extruder

,

Plastic Conical Twin Screw Extruder

,

Conical Plastic Twin Screw Extruder

Leave a Message
Product Description
Automatic Twin Screw Extruder

PVC pipe production line, plastic pipe production line is mainly used for the production of agricultural water supply and drainage, building water supply and drainage, cable laying and other aspects of a variety of pipe diameter, wall thickness of plastic PVC pipe, the unit is composed of conical twin screw extruder, vacuum setting table, tractor, stacking rack and so on.

Screw extruder and tractor adopt imported AC frequency conversion speed regulating device, vacuum pump and traction motor are adopted this device.

Traction has two claws, three claws, four claws, six claws and other traction methods. The saw blade or planetary cutting form can be selected, and the length measuring and thickening device can be used. The unit has reliable performance and high production efficiency.



Model
SJSZ45
SJSZ51
SJSZ55
SJSZ65
SJSZ80
SJSZ92
Screw diameter
45/100
51/105
55/110
65/132
80/156
92/188
Screw quantity
2
Screw rotating direction
Turning outwards with different direction
Screw rotation speed
1-38 r/min
1-38 r/min
1-38 r/min
1-36 r/min
1-35 r/min
1-34 r/min
Effective length of screw
1000 mm
1050mm
1150 mm
1430 mm
1800 mm
2520 mm
Main motor power
11-15 kw
15-18.5 kw
22 kw
37 kw
55 kw
90 kw
Barrel heating power
12 kw
12 kw
18 kw
24 kw
36 kw
48 kw
Production capacity
95 kg/h
110 kg/h
150 kg/h
250 kg/h
380 kg/h
520 kg/h
Net weight
3000 kg
3200 kg
4200 kg
5000 kg
6500 kg
750 kg
