PE Water Supply Pipe Production Line HDPE Gas Supply Pipe Making Machine

Place of Origin Qingdao,Shandong,China
Brand Name Kechengda
Model Number SJ-65 75 90 120 150
Minimum Order Quantity 1
Price USD 25000~100000
Packaging Details wrapping film
Delivery Time 35 work days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Screw Design Single-screw Screw L/D Ratio 30:1
Condition New Plastic Processed PE, PP, ABS, PE/PP, LDPE
Application PIPE, Sheet Showroom Location None
Place Of Origin Shandong, China Weight 7000 KG
Warranty 1 Year Key Selling Points Energy Saving
Applicable Industries Manufacturing Plant, Construction Works , Energy & Mining Video Outgoing-inspection Provided
Warranty Of Core Components 1 Year Core Components Motor, Engine, Gearbox, Screw
Machinery Test Report Provided Screw Material 38CrMoALA
Screw Diameter (mm) 65 Screw Speed (rpm) 35 Rpm
Voltage Country Voltage Dimension(L*W*H) 30M*3M*3M
Power (kW) 90 Raw Material PP PE Granules
Automatic Grade Half Automatic Capacity 150-250kgh
Pipe Diameter 75-250mm Inverter ABB Brand
Temperature Control Ormon Brand
High Light

HDPE Water Supply Pipe Production Line

,

Gas Supply Pipe Making Machine

Leave a Message
Product Description

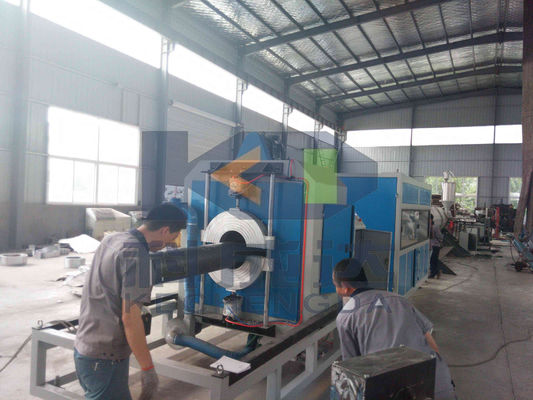

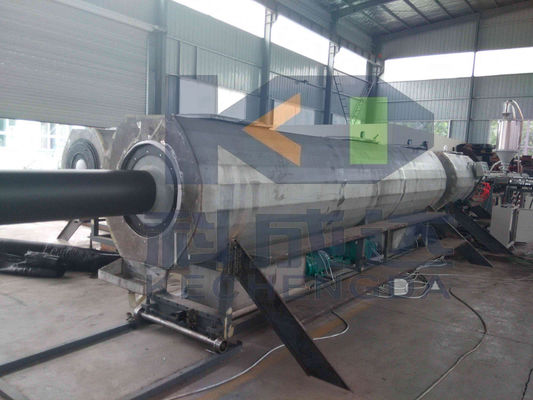

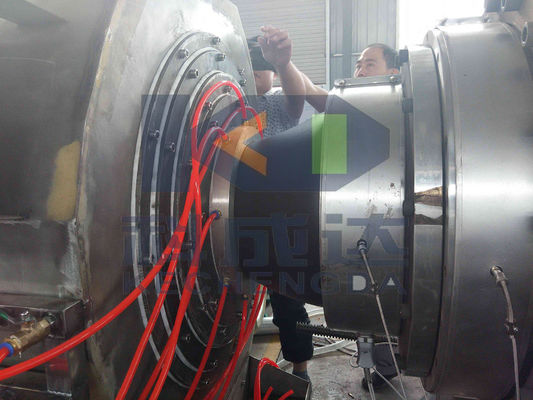

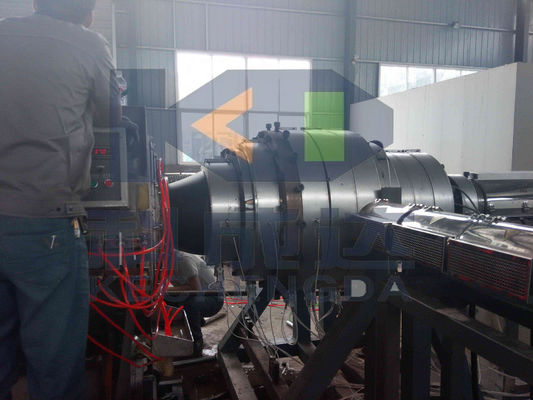

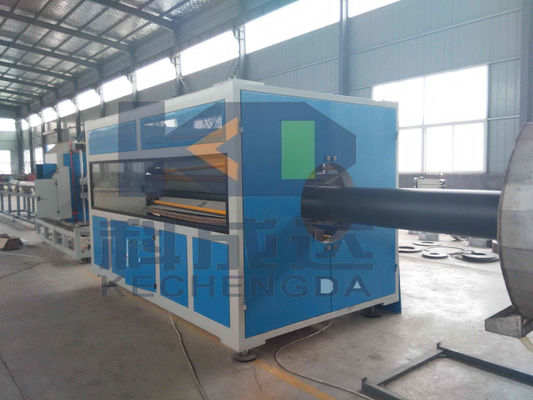

PE Water Supply Pipe production line


PE pipe production line is mainly used for producing pipe of waster supply and drainage in the field of agriculture and construction etc. This machine consists of extruder, mould, vacuum calibration tank, haul off unit. Cutting unit,stacker etc. The single screw extruder and haul off unit apply famous A/C frequency conversion speed regulation device, both vacuum pump and water pump apply famous brand.The production efficiency is high with special device. It can also produce PP, PPR pipe etc.
Pipe Diameter(mm)
Extruder Model
Max. Output(kg/h)
Motor power(kw)
20-63mm
SJ65/30
150KG
37KW
40-160mm
SJ65/33
220KG
55KW
75-250mm
SJ75/33
300KG
75KW
110-315mm
SJ75/38
500KG
160KW
315-630mm
SJ90/38
800KG
160-250KW
700-1200mm
SJ120/38
1200KG
160-350KW
