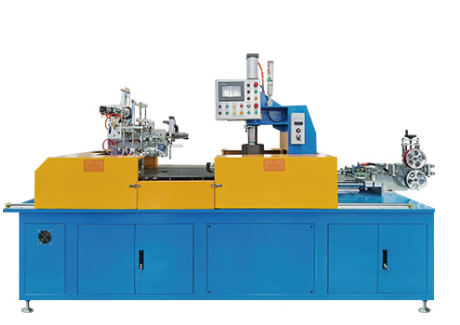

Servo Drive 630mm Pair Twisting Machine For Data And Communication Wires
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Core Wire Diameter:
Ø2.0–5.0 Mm
Pay-off System (Outside):
Power Release
Pair Quantity:
Up To 54 Pairs
Twisting Method:
High-Precision Pair Twisting
Machine Structure:
Heavy Duty Steel Frame
Power Configuration:
380V 50Hz Three Phase
Maximum Line Speed:
700 M/min
Braking Method:
Electromagnetic Brake
Drive Configuration:
High-Efficiency Servo Drive
Working Environment:
0 To 45 Degrees Celsius
Highlight:
630mm Pair Twisting Machine
,Servo Drive Pair Twisting Machine
,Communication Wires Pair Twisting Machine
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description
High-Efficiency Ø630 Pair Twisting Machine for Data and Communication Wires
The High-Efficiency Ø630 Pair Twisting Machine is a modern solution developed for precise and continuous twisting of data and communication wires. By combining optimized mechanical transmission with intelligent control logic, this equipment ensures stable twisting pitch and uniform conductor pairing under high-speed operation. The machine is designed to support long production cycles while maintaining consistent quality, making it a reliable choice for advanced cable manufacturing environments.
Production Capability and Usage Scope
This Pair Twisting Machine is primarily used in the production of data transmission cables, communication wires, signal cables, and other paired conductor products. It is suitable for manufacturers serving telecommunications infrastructure, networking systems, and digital signal applications. The machine performs efficiently in factories requiring high output, repeatable accuracy, and minimal variation between batches. With its balanced tension control and smooth wire handling, the Pair Twisting Machine supports both standard and high-performance cable designs.
Technical Specifications
| Item | Specification |
|---|---|
| Machine Model | ZD-Φ630 |
| Core Wire Diameter | Ø2.0-5.0 mm |
| Stranded Conductor Outer Diameter (OD) | Ø4.0-10 mm |
| Pitch | 20-160 mm |
| Twist Direction | S or Z |
| Power Motor | 7.5 kW |
| Maximum Speed | 150 rpm/min |
| Bobbin Size (Pay-off) | Ø630 mm |
| Pay-off System (Outside) | Power Release |
| Pay-off System (Internal) | Magnetic Powder Tension Line |
| Take-up Bobbin Size | Ø800 * 800 * 600 mm |
| Braking Method | Electromagnetic Brake |
| Operation Method | Touch Screen Operation |
Applications and Uses
The Φ630 Twist-Free Twisting Machine is widely used in the wire and cable industry for twisting paired conductors used in communication cables, control cables, signal cables, and data transmission cables. It is especially suitable for applications where uniform twisting pitch and stable conductor geometry are critical.
As a key product of the Pair Twisting Machine Series, this machine supports copper and insulated conductors and can be configured to meet different cable design requirements. It is ideal for manufacturers serving global telecommunications infrastructure, industrial automation, and electronic wiring markets.
Product Advantages
- Eliminates residual torsion in finished products for consistent electrical characteristics
- Ensures uniform twisting pitch and stable conductor geometry
- High efficiency and operational stability with precise pitch and tension control
- Reduces material waste and enhances overall production efficiency
- User-friendly control interface for quick parameter adjustments
- Durable mechanical structure ensures long service life
- Ideal for high-quality communication and data cables within the Pair Twisting Machine Series
