630mm Twist Free Twisting Machine With Automatic Constant Tension System Touch Screen
|
630mm Twist Free Twisting Machine With Automatic Constant Tension System Touch Screen
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Core Wire Diameter:
Ø2.0–5.0 Mm
Pay-off System (Outside):
Power Release
Pay-off System (Internal):
Magnetic Powder Tension Line
Tension Control:
Automatic Constant Tension System
Machine Structure:
Heavy Duty Steel Frame
Applicable Reel Diameter:
Up To 630 Mm
Applicable Materials:
Copper And Insulated Conductors
Braking Method:
Electromagnetic Brake
Operation Method:
Touch Screen Operation
Take-up Bobbin Size:
Ø800 × 800 × 600 Mm
Highlight:
630mm twist free twisting machine
,Touch Screen twist free twisting machine
,twist free pair twisting machine
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description
Φ630 Twist-Free Twisting Machine
Equipment Composition

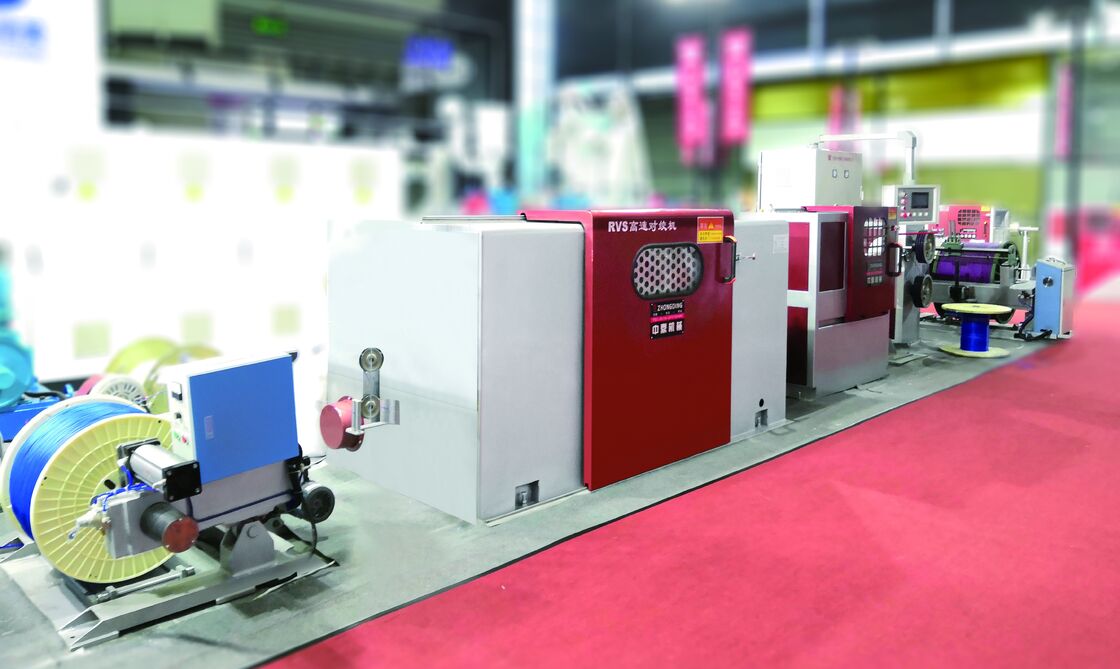

The torsion-free high-speed twisting machine is composed of active pay-off, torsion-free twisting, traction machine, wrapping machine, and take-up machine.
Technical Features
- Applies for RVS (flower line) and computer cable without twist after double twisting
- Ensures insulated core wire interlaces uniformly, avoiding non-uniform twist force
- Produces finished wire with uniform, precision pitch
- Adopted for high-speed data wires and cables (USB 2.0, USB 3.0, CAT-6E, CAT-7E, HDMI)
- Combines functions and merits of non-twist stranding machine and high-speed wrapping machine
- Two machines can operate separately or simultaneously
Technical Parameters
| Item | Specification |
|---|---|
| Machine Model | ZD-Φ630 |
| Core Wire Diameter | Ø2.0-5.0 mm |
| Stranded Conductor Outer Diameter (OD) | Ø4.0-10 mm |
| Pitch | 20-160 mm |
| Twist Direction | S or Z |
| Power Motor | 7.5 kW |
| Maximum Speed | 150 rpm/min |
| Bobbin Size (Pay-off) | Ø630 mm |
| Pay-off System (Outside) | Power Release |
| Pay-off System (Internal) | Magnetic Powder Tension Line |
| Take-up Bobbin Size | Ø800 * 800 * 600 mm |
| Braking Method | Electromagnetic Brake |
| Operation Method | Touch Screen Operation |
Applications and Uses
The Φ630 Twist-Free Twisting Machine is widely used in the wire and cable industry for twisting paired conductors used in communication cables, control cables, signal cables, and data transmission cables. It is especially suitable for applications where uniform twisting pitch and stable conductor geometry are critical.
As a key product of the Pair Twisting Machine Series, this machine supports copper and insulated conductors and can be configured to meet different cable design requirements. It is ideal for manufacturers serving global telecommunications infrastructure, industrial automation, and electronic wiring markets.
Product Advantages
- Eliminates residual torsion in finished products for consistent electrical characteristics
- Ensures uniform twisting pitch and stable conductor geometry
- High efficiency and operational stability with precise pitch and tension control
- Reduces material waste and enhances overall production efficiency
- User-friendly control interface for quick parameter adjustments
- Durable mechanical structure ensures long service life
- Ideal for high-quality communication and data cables within the Pair Twisting Machine Series
