Smart 630mm Pair Twisting Machine With Automatic Tension Balance System
|
Smart 630mm Pair Twisting Machine With Automatic Tension Balance System
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Applicable Wire Diameter:
Ø630 Mm
Pay-off System (Outside):
Power Release
Pay-off System (Internal):
Magnetic Powder Tension Line
Tension Control System:
Automatic Tension Balance
Machine Structure:
Heavy Duty Steel Frame
Number Of Twisting Pairs:
Up To 48
Applicable Materials:
Copper And Insulated Conductors
Braking Method:
Electromagnetic Brake
Power Supply:
380V 50Hz Three Phase
Operating Temperature:
0 To 45 Degrees Celsius
Highlight:
Smart Pair Twisting Machine
,50Hz Pair Twisting Machine
,Three Phase Pair Twisting Machine
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description

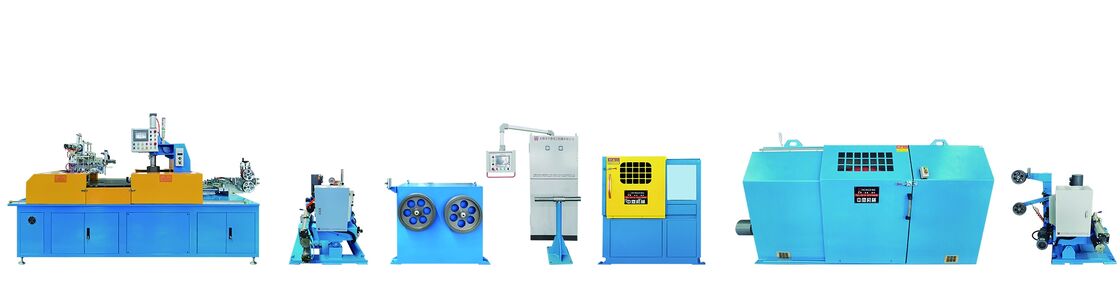

Smart Ø630 Pair Twisting Machine with Automatic Tension Balance System
The Smart Ø630 Pair Twisting Machine is engineered to meet the growing demand for high-precision, high-speed data wire production. Featuring an automatic tension balance system and intelligent control architecture, this machine delivers stable twisting performance, consistent conductor alignment, and superior cable quality. The Ø630 configuration enables efficient processing of fine data wires while maintaining smooth, twist-free operation throughout continuous production cycles.
Applications
This Pair Twisting Machine is widely utilized in the manufacturing of:
- High-speed data cables and LAN cables
- Communication wires and paired conductor products
- Telecommunications network infrastructure
- Data center cabling systems
- Digital infrastructure projects
Ideal for medium to large cable production plants requiring consistent quality and high output efficiency, particularly in applications demanding stable signal transmission and uniform twist accuracy.
Technical Specifications
| Machine Model | ZD-Φ630 |
| Core Wire Diameter | Ø2.0-5.0 mm |
| Stranded Conductor Outer Diameter (OD) | Ø4.0-10 mm |
| Pitch | 20-160 mm |
| Twist Direction | S or Z |
| Power Motor | 7.5 kW |
| Maximum Speed | 150 rpm/min |
| Bobbin Size (Pay-off) | Ø630 mm |
| Pay-off System (Outside) | Power Release |
| Pay-off System (Internal) | Magnetic Powder Tension Line |
| Take-up Bobbin Size | Ø800 × 800 × 600 mm |
| Braking Method | Electromagnetic Brake |
| Operation Method | Touch Screen Operation |
Key Advantages
- Precise control of twisting pitch and tension for uniform pair geometry
- Automatic tension balance system minimizes material stress and prevents deformation
- Intelligent touch screen interface simplifies operation and real-time monitoring
- Reduced operator training time with user-friendly controls
- Rigid steel structure ensures machine stability during long-term high-speed operation
- Minimal maintenance requirements for continuous production efficiency
In modern cable manufacturing environments, the Pair Twisting Machine plays a crucial role in improving production efficiency and maintaining consistent quality. With its smart control system, high-speed capability, and reliable mechanical design, this machine helps manufacturers meet strict performance requirements while reducing operational costs.
Conclusion
The Smart Ø630 Pair Twisting Machine with Automatic Tension Balance System is a reliable and efficient solution for advanced data wire twisting, engineered to meet the demands of the global market.
