500-630mm Wire Stranding Machine 2500rpm PLC Control For Precision Wire Stranding
|
500-630mm Wire Stranding Machine 2500rpm PLC Control For Precision Wire Stranding
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Type:
Wire Stranding Equipment
Stranddiameterrange:
0.1 Mm To 5 Mm
Noiselevel:
Less Than 75 DB
Capacity:
Up To 1000 Meters Per Minute
Electric Element:
Siemens And Omron
Machineweight:
1500 Kg
Controlsystem:
PLC With Touch Screen
Operatingtemperaturerange:
-10°C To 45°C
Degree Of Automation:
Full-automatic
Productname:
Stranding Machine
Highlight:
630mm Wire Stranding Machine
,500mm Wire Stranding Machine
,2500rpm stranding machines
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description

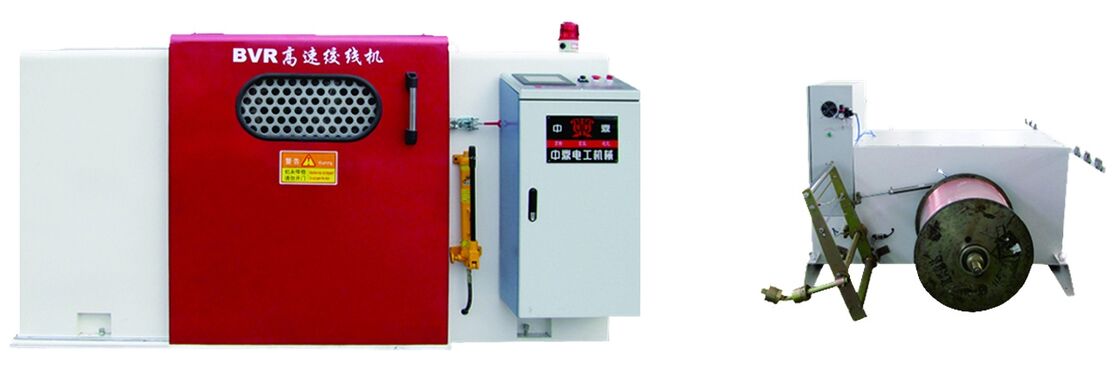

Φ500-Φ630 High Speed Stranding Machine with 2500 rpm, Full-automatic Operation, and PLC Control for Precision Wire Stranding
Application
Suitable for copper wire stranding of computer cables, headphone cables, telephone wires, automotive wires, and network cables.
Technical Features
- Main shaft maximum rotation speed of 2500 rpm
- Automatic tension tracking and adjustment system ensures uniform wire tension throughout the process
- Oil-lubricated main engine with natural circulation cooling extends main shaft bearing service life
- Advanced wire-passing system eliminates scratching and jumping phenomena
- Premium Japanese brand bearings throughout the machine
- High-quality bow belt material prevents vibration-induced jumping during high-speed operation
- Imported components including inverter, PLC, magnetic powder clutch, electromagnetic brake, and hydraulic jack reduce failure rates and maintenance costs
Technical Parameters
| Item | Description | ZD-Ø500 | ZD-Ø630 |
|---|---|---|---|
| Machine Model | Machine model | ZD-Ø500 | ZD-Ø630 |
| Rotational Speed | Rotational speed | 2500 rpm | 2000 rpm |
| Stranding Type | Stranding limit | Suitable for stranding more than seven copper wires | Suitable for stranding more than seven copper wires |
| Single Wire Diameter | Wire diameter range | Ø0.06-Ø0.45 mm | Ø0.08-Ø0.60 mm |
| Stranded Cross Section | Cross-sectional area | 0.05-2.5 mm² | 0.8-6 mm² |
| Pitch Range | Twisting pitch | 6.3-50 mm (40 steps) | 11.15-100 mm (34 steps) |
| Twisting Direction | Twist direction | S or Z | S or Z |
| Take-Up Size | Take-up reel diameter | Ø500 mm | Ø630 mm |
| Winding Method | Take-up system | Light roll type cable, adjustable row spacing | Light roll type cable, adjustable row spacing |
| Motor Power | Rated power | 4 kW | 5.5 kW |
| Center Height | Center height | 700 mm | 750 mm |
| Braking System | Braking method | Electromagnetic brake with automatic power-off protection | Electromagnetic brake with automatic power-off protection |
| Tension Control | Tension system | Magnetic powder clutch with external tension adjustment | Magnetic powder clutch with external tension adjustment |
| Machine Dimensions | Overall size | L1260 × W1280 × H1260 mm | L3400 × W1400 × H1500 mm |
| Net Weight | Machine weight | 1700 kg | 1920 kg |
Performance Advantages
The Stranding Machine delivers high-speed performance without sacrificing stranding precision. Automatic constant tension control ensures uniform strand distribution and reduces the risk of wire breakage. The optimized drive system enables smooth acceleration and stable rotation, supporting continuous high-speed operation.
An intuitive control interface simplifies machine setup and parameter adjustment, reducing operator workload and improving production efficiency. The heavy-duty steel frame enhances machine stability and extends service life, lowering maintenance costs over time. With its flexible configuration and reliable performance, the Stranding Machine helps manufacturers increase output while maintaining consistent product quality.
In advanced cable production lines, the Stranding Machine plays a vital role in supporting scalable manufacturing and meeting growing market demands. Its combination of speed, precision, and durability makes it an essential component of modern stranding operations.
Market Positioning
The Φ500-Φ630 High Speed Stranding Machine is engineered to support high-efficiency conductor production and is positioned for the global market.
