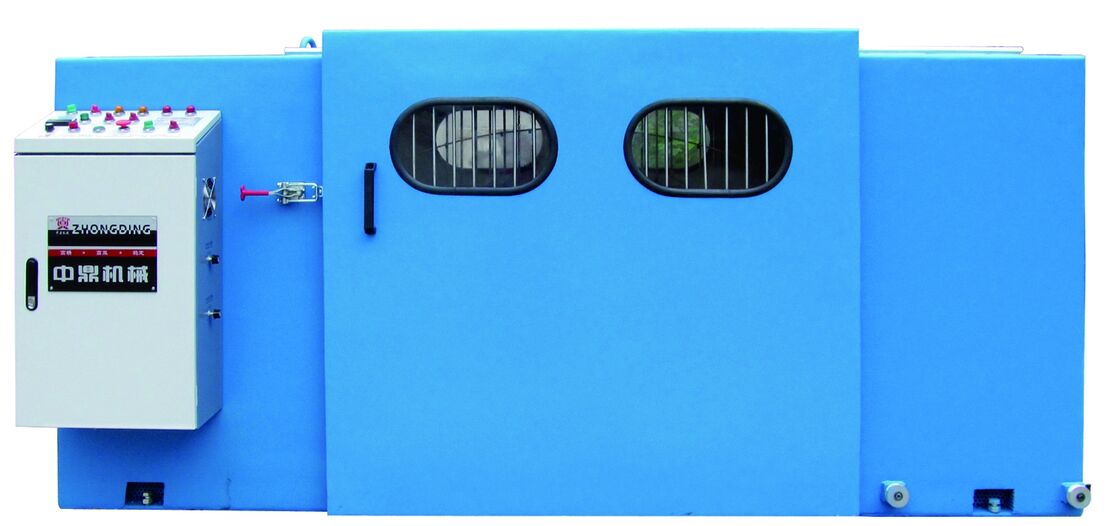

800-250mm High Speed Wire Stranding Machine With 1800rpm Maximum Speed PLC Control
|
800-250mm High Speed Wire Stranding Machine With 1800rpm Maximum Speed PLC Control
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Powersupply:
380V, 50Hz, 3-phase
Dieheadtype:
Customizable For Different Pipe Sizes
Pipediameterrange:
16mm To 630mm
Installationdimension:
Depends On Model, Approx. 10m X 2m X 2.5m
Screwdiameter:
45mm To 120mm
Extrudertype:
Single Screw Or Twin Screw
Productname:
Extrusion Production Line Series
Linespeed:
Up To 30 M/min
Application:
Plastic Pipe Production
Motorpower:
15 KW To 110 KW
Highlight:
250mm Wire Stranding Machine
,800mm Wire Stranding Machine
,1800rpm stranding machine
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description
Φ800-Φ250 High Speed Stranding Machine
The Φ800-Φ250 High Speed Stranding Machine is engineered for efficient, precise, and continuous conductor stranding in modern cable manufacturing facilities. Designed with a high-rigidity mechanical structure and optimized rotational balance, this machine delivers stable performance at high speeds while maintaining excellent strand uniformity.
This stranding machine integrates advanced control technology with a heavy-duty industrial frame, allowing smooth operation across a wide range of conductor sizes. The optimized drive system reduces vibration and mechanical stress, supporting long-term high-speed operation and minimizing maintenance requirements.
Technical Features
- Latest generation product designed to replace 400-type tubular stranding machines
- 4.5 times higher output for 1+6 conductor regular stranding products compared to 400-type machines
- Energy-efficient operation with reduced power consumption
- Compact footprint requiring minimal floor space
- Low noise operation for improved working environment
Technical Specifications
| Machine Category | High Speed Stranding Machine |
| Applicable Model Range | Φ800 / Φ1000 / Φ1250 |
| Maximum Operating Speed | Up to 1800 rpm depending on configuration |
| Conductor Compatibility | Copper and aluminum multi-wire conductors |
| Single Wire Diameter Range | 0.25 mm to 2.80 mm |
| Total Stranding Diameter | 6 mm to 55 mm |
| Stranding Structure | Layered concentric stranding |
| Lay Length Adjustment | Digital variable pitch control |
| Pitch Range | 20 mm to 280 mm |
| Twisting Direction | Selectable S or Z |
| Pay-off and Take-up Size | Φ800 mm to Φ1250 mm |
| Tension Regulation | Servo-controlled dynamic tension system |
| Drive Technology | Independent motor drive with frequency control |
| Control Interface | Industrial PLC with color touch screen |
| Power Consumption | 14 kW to 24 kW depending on model |
| Braking System | Intelligent energy feedback braking |
| Frame Construction | High-strength welded steel base |
| Vibration Control | Multi-point dynamic balancing system |
| Noise Level | ≤78 dB during rated operation |
| Machine Footprint | Approx. L4300 × W2600 × H2600 mm |
| Net Machine Weight | 2.1 to 2.8 tons |
| Continuous Operation Capability | Designed for 24-hour industrial production |
Key Advantages
The stranding machine delivers high-speed performance while maintaining precise strand distribution and alignment. Automatic constant tension control ensures uniform wire feeding and reduces the risk of conductor breakage. The optimized drive system supports smooth acceleration and stable rotation, making it suitable for continuous production at high output levels.
An intuitive control interface allows operators to adjust parameters quickly and monitor production status in real time, improving operational efficiency. The reinforced steel structure enhances machine stability and durability, extending service life and reducing downtime.
In advanced cable manufacturing lines, this stranding machine plays a critical role in enabling scalable production and meeting growing market demand. Its combination of speed, precision, and durability makes it a dependable solution for industrial stranding operations.
Market Positioning
The Φ800-Φ250 High Speed Stranding Machine is developed to support high-efficiency conductor manufacturing and is positioned for the global market, meeting international standards for performance and reliability.
