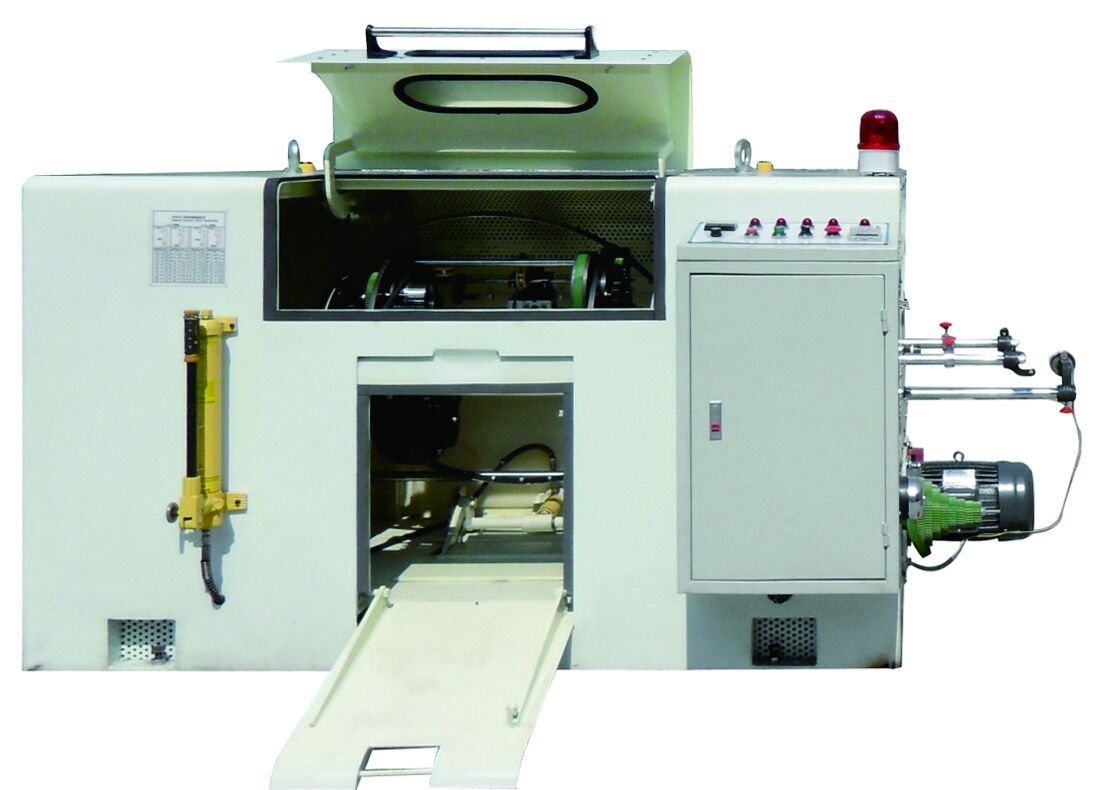

380V 2500rpm Wire Stranding Machine With Adjustable Diameter PLC System
|
380V 2500rpm Wire Stranding Machine With Adjustable Diameter PLC System
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Wire Diameter Range:
0.5 Mm To 6.3 Mm
Stranddiameterrange:
0.1 Mm To 5 Mm
Stranding Speed:
Up To 2500 Rpm
Capacity:
Up To 1000 Meters Per Minute
Tension Control:
Dynamic Adjustable Tension System
Stranding Configuration:
Multi-strand And Compact Strand Options
Operatingtemperaturerange:
-10°C To 45°C
Power Supply:
380V / 50Hz Or Customized
Dimensions:
4200 Mm X 1800 Mm X 1600 Mm
Highlight:
380V Wire Stranding Machine
,2500rpm Wire Stranding Machine
,PLC System cable stranding machine
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description
High-Efficiency Wire Stranding Machine with Adjustable Diameter and PLC System
The High-Efficiency Wire Stranding Machine with adjustable diameter and PLC system is engineered for precision wire production, delivering high-speed, reliable, and fully automated stranding processes. Designed for modern wire and cable manufacturing, this advanced stranding machine combines efficiency, accuracy, and flexibility, making it suitable for a wide range of wire sizes and production requirements.
This stranding machine is ideal for producing electrical wires, control cables, power cables, and specialty wires in industries that demand high-quality and consistent strand formation. The adjustable diameter feature enables quick switching between different wire specifications, enhancing production versatility. Equipped with a PLC control system, the machine ensures precise speed regulation, automated tension adjustment, and seamless operation, reducing human error and increasing overall productivity.
Technical Features
- Main shaft maximum rotation speed of 2500 rpm
- Automatic tension tracking and adjustment system ensures uniform wire tension
- Oil-lubricated main engine with natural circulation cooling extends main shaft bearing service life
- Advanced wire-passing system eliminates scratching and jumping phenomena
- Premium Japanese brand bearings throughout the machine
- High-quality bow belt material prevents vibration-induced jumping during high-speed operation
- Imported components including inverter, PLC, magnetic powder clutch, electromagnetic brake, and hydraulic jack reduce failure rates and maintenance costs
Technical Parameters
| Item | Description | ZD-Ø500 | ZD-Ø630 |
|---|---|---|---|
| Machine Model | Machine model | ZD-Ø500 | ZD-Ø630 |
| Rotational Speed | Rotational speed | 2500 rpm | 2000 rpm |
| Stranding Type | Stranding limit | Suitable for stranding more than seven copper wires | Suitable for stranding more than seven copper wires |
| Single Wire Diameter | Wire diameter range | Ø0.06-Ø0.45 mm | Ø0.08-Ø0.60 mm |
| Stranded Cross Section | Cross-sectional area | 0.05-2.5 mm² | 0.8-6 mm² |
| Pitch Range | Twisting pitch | 6.3-50 mm (40 steps) | 11.15-100 mm (34 steps) |
| Twisting Direction | Twist direction | S or Z | S or Z |
| Take-Up Size | Take-up reel diameter | Ø500 mm | Ø630 mm |
| Winding Method | Take-up system | Light roll type cable, adjustable row spacing | Light roll type cable, adjustable row spacing |
| Motor Power | Rated power | 4 kW | 5.5 kW |
| Center Height | Center height | 700 mm | 750 mm |
| Braking System | Braking method | Electromagnetic brake with automatic power-off protection | Electromagnetic brake with automatic power-off protection |
| Tension Control | Tension system | Magnetic powder clutch with external tension adjustment | Magnetic powder clutch with external tension adjustment |
| Machine Dimensions | Overall size | L1260 × W1280 × H1260 mm | L3400 × W1400 × H1500 mm |
| Net Weight | Machine weight | 1700 kg | 1920 kg |
Key Advantages
- High Efficiency: Capable of high-speed wire stranding, improving production output and reducing downtime
- Precision Control: PLC system ensures accurate strand alignment and consistent quality across batches
- Flexible Operation: Adjustable diameter and multi-strand capability allow quick adaptation to different wire specifications
- Low Maintenance: Robust construction and automated monitoring reduce wear and operational errors
- Global Compatibility: Designed to meet international electrical standards, making it suitable for global markets
Market Positioning
Global wire and cable manufacturing industry, including Europe, North America, Asia, and emerging markets worldwide.
The High-Efficiency Wire Stranding Machine represents the next generation of industrial wire manufacturing equipment, combining automation, precision, and versatility. With its global adaptability, this stranding machine is an ideal solution for manufacturers looking to enhance production efficiency and deliver high-quality wire products to customers worldwide.
