Precision Drive Haul Off Machine With 200N-5000N Traction Force 120m/Min
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Traction Force Range:
200 N To 5000 N
Maximum Line Speed:
120 M Per Minute
Operation Mode:
Continuous Automatic Operation
Cable Diameter Range:
2 Mm To 60 Mm
Drive Type:
Servo Motor Drive
Speed Regulation:
Variable Frequency Control
Machine Type:
Industrial Haul-off Machine
Frame Structure:
Heavy Duty Steel Construction
Tension Control:
Stable And Adjustable Traction Control
Highlight:
Precision Drive Haul Off Machine
,5000N Haul Off Machine
,120m/Min extrusion haul off
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description
Precision Drive Haul-off Machine for Stable Cable Traction and Continuous Production
The Precision Drive Haul-off Machine is engineered for cable and wire manufacturers requiring stable traction, precise speed control, and continuous production efficiency. This advanced haul-off system integrates high-accuracy drive technology with a heavy-duty mechanical structure to ensure consistent pulling force throughout the production process. It maintains uniform cable tension and minimizes vibration, significantly enhancing product quality while reducing material waste.
Featuring a modern PLC control system, the haul-off machine enables operators to easily adjust traction force and line speed via an intuitive touch screen interface. This flexibility makes the equipment suitable for diverse cable diameters and materials. The robust steel frame construction ensures long-term reliability under demanding industrial conditions, establishing this haul-off machine as an essential component of modern cable production lines.
Technical Features
- Flat belt type traction with pneumatic clamping system
- Main power options: DC motor or variable frequency speed regulation
Technical Parameters
| Machine Model | Maximum Traction Force | External Diameter | Track Contact Length | Crawler Width | Number of Cylinder Pairs | Motor Power | Equipment Center Height |
|---|---|---|---|---|---|---|---|
| TQDII 500 | 500 kg | 5 to 40 mm | 750 mm | 80 mm | 3 | 5.5 kW | 1000 mm |
| TQDII 800 | 800 kg | 8 to 60 mm | 1200 mm | 100 mm | 4 | 7.5 kW | 1000 mm |

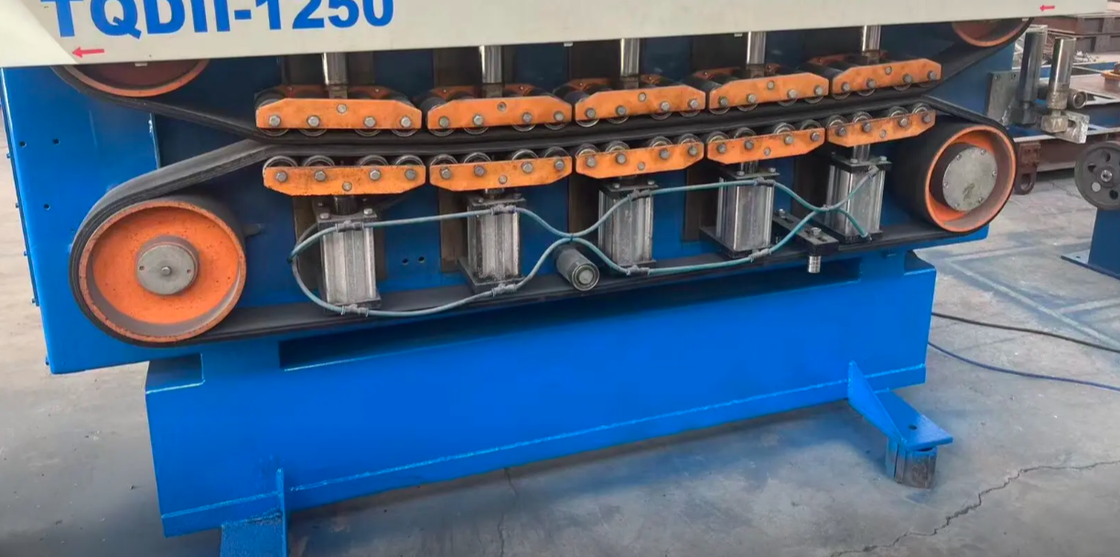

| TQDII 1250 | 1250 kg | 10 to 80 mm | 1500 mm | 120 mm | 5 | 7.5 kW | 1000 mm |
| TQDII 1600 | 1600 kg | 12 to 100 mm | 1900 mm | 120 mm | 6 | 11 kW | 1000 mm |
| TQDII 2000 | 2000 kg | 16 to 120 mm | 2100 mm | 140 mm | 7 | 15 kW | 1000 mm |
| TQDII 2500 | 2500 kg | 6 to 150 mm | 2400 mm | 140 mm | 8 | 15 kW | 1000 mm |
| TQDII 3200 | 3200 kg | 20 to 160 mm | 2700 mm | 150 mm | 9 | 15 kW | 1000 mm |
| TQDII 4000 | 4000 kg | 30 to 180 mm | 3000 mm | 160 mm | 10 | 18.5 kW | 1000 mm |
Key Advantages
The Precision Drive Haul-off Machine delivers precise traction control that maintains stable cable tension during production. The intelligent control system ensures smooth acceleration and deceleration, reducing stress on cables and improving overall quality. Designed for operational efficiency, this haul-off machine enables quick parameter adjustments and reduced setup time.
A significant advantage is the low-maintenance design. The reinforced frame, high-quality bearings, and wear-resistant belts extend service life and minimize downtime. The machine enhances workplace safety through controlled and reliable pulling performance. Combining stability, precision, and durability, this haul-off machine helps manufacturers achieve higher productivity and consistent output quality.
Global Market Solution
For manufacturers serving international markets, this haul-off machine provides a stable and scalable traction solution for modern cable production. Its flexible configuration supports various cable standards and production speeds, while intelligent automation ensures reliable performance across diverse operating environments. This makes the haul-off machine a long-term investment for companies seeking to strengthen global competitiveness and production capacity.
