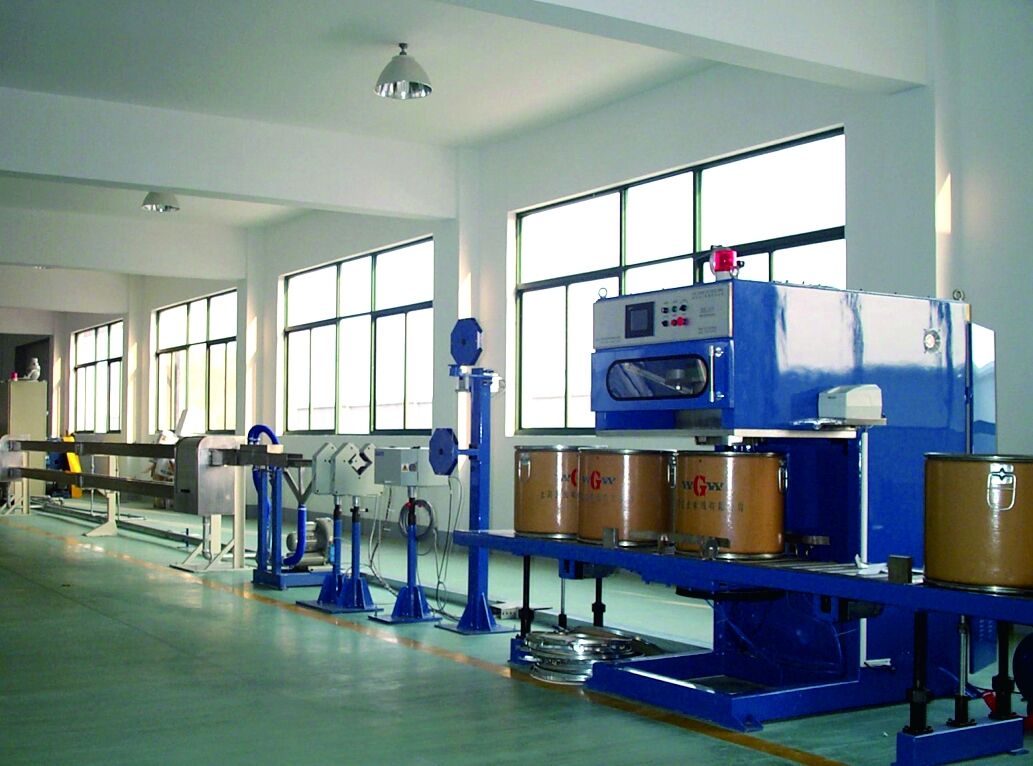

Ultra Precision PLC Controlled Automotive Extrusion Machine With Flexible Modular Design
|
Ultra Precision PLC Controlled Automotive Extrusion Machine With Flexible Modular Design
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Linespeed:
0-30 M/min
Applicable Conductor Range:
0.35 Mm2 To 6.0 Mm2
Extruder Screw Diameter:
50 Mm To 65 Mm
Maximum Extrusion Speed:
Up To 480 Meters Per Minute
Heatingzones:
4-6 Zones
Control System:
PLC With Precision Control
Temperature Control:
Independent Multi Zone System
Cooling Method:
Closed Loop Water Cooling
Dieheadtype:
Single Or Multi-layer
Application:
Plastic Pipe Extrusion, Profile Extrusion
Highlight:
PLC Controlled extrusion machine
,Automotive extrusion machine
,6 zones cable extrusion line
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description
Ultra Precision PLC Controlled Automotive Wire Extrusion Solution
Product Overview
This high-precision manufacturing system from our Extrusion Production Line Series is engineered for modern automotive wire production. The solution integrates advanced PLC control technology with a flexible modular design to deliver precise extrusion results, stable operation, and high production efficiency. Real-time monitoring and fine adjustment capabilities ensure consistent insulation quality throughout continuous production cycles.
Application Scope
This extrusion solution is widely used for producing automotive electrical wires and signal cables, including wiring harness cables, battery connection wires, control system wiring, and interior electronic cables. The system is suitable for manufacturing low-voltage automotive wires that comply with international automotive and electrical standards. The flexible modular configuration supports rapid product changeover and efficient multi-specification production.
Product Advantages
Key benefits include ultra-precision control for stable insulation thickness and improved product consistency. The modular mechanical design simplifies maintenance and allows for easy system expansion. The PLC-based control platform reduces operator workload and minimizes production errors, while energy-efficient components help lower operating costs during continuous high-output operation.
Optional Accessories
- Flyer type pay-off
- Swing arm type pay-off
- PLC computer all-process control
- Laser diameter gauge
- Copper wire preheater
Technical Specifications
| Machine Model | Pay-off Type | Screw Diameter | Screw L/D Ratio | Extrusion Capacity | Mainframe Power | Wire Spec | Cooling System |
|---|---|---|---|---|---|---|---|
| ZD-50+35 | Active / Passive pay-off | φ50 mm | 25:1 | 70 kg/h | 11 kW | φ0.75-4 mm | Single layer / Double U type |
| ZD-60+35 | Active / Passive pay-off | φ60 mm | 26:1 | 110 kg/h | 18.5 kW | φ0.8-8 mm | Single layer / Double U type |
| ZD-70+35 | Active / Passive pay-off | φ70 mm | 26:1 | 160 kg/h | 37 kW | φ1.5-12 mm | Single layer / Double U type |
| ZD-80+40 | Active / Passive pay-off | φ80 mm | 26:1 | 220 kg/h | 55 kW | φ2-18 mm | Single layer / Double U type |
| Capstan Power | Accumulator Type | Production Speed | Take-up Type | Loop Formation | Electrical Control |
|---|---|---|---|---|---|
| 4 kW | Inclined / Horizontal | Max 500 m/min | Double-axis axle-mounted / bundle | Automatic looping | Frequency control + PLC control |
| 4 kW | Horizontal | Max 450 m/min | Double-axis axle-mounted / bundle | Automatic looping | Frequency control + PLC control |
| 4 kW | Horizontal | Max 400 m/min | Double-axis axle-mounted / bundle | Automatic looping | Frequency control + PLC control |
| 5.5 kW | Horizontal | Max 350 m/min | Shaftless double bobbin bonding | Automatic looping | Frequency control + PLC control |
