SJ65 PVC Reinforced Plastic Pipe PE plastic hose automatic production line extrusion equipment

Place of Origin Qingdao,Shandong,China
Brand Name Kechengda
Model Number SJ-45、SJ-65
Minimum Order Quantity 1 set
Packaging Details wrapping film
Delivery Time 50 workdays
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

PE plastic hose Production Line

,

PVC Reinforced Plastic Pipe Production Line

Leave a Message
Product Description



                                  PRODUCT DESCRIPTION

Plastic PVC Materials Fiber Reinforced Hose Pipe Production Line / Extrusion Machine

Product Description

Brief introduction:
The line is suitable for the production of PVC fiber reinforced pipe. This kind of pipe is made of three layers structure. It can be widely used in the fields of machinery, coal mine, oil, chemical plant, agricultural irrigation, building, solar water heater, coal gas pot, etc.

PVC Polyester Fiber reinforced hose is used for conveying water, oil, gas under normal working condition in the factory, farm, ship, building and family. The hose used for foodstuffs is made of special materials.

With polyester open mesh braiding permanently encapsulated in walls of clear, flexible PVC tubing PVC Polyester Fiber reinforced hose is light, flexible, durable, non-toxic without odor, anti-erosion and adaptable to high pressure condition.Corrosion and abrasion resistant with flexibility similar to rubber but with much longer life.

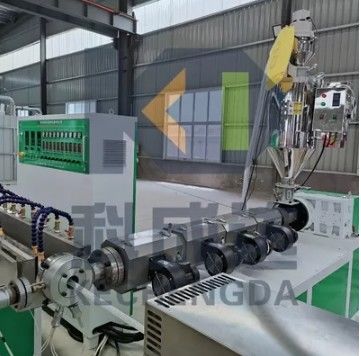

This Line consists of main extruders,water cooling tank, haul off machine, fiber braiding machine,coiler etc, which has reasonable design, unique structure, stable performance
,easy operation and maintenance, constant production capacity, warmly welcomed by customers.



Production process and equipment composition
Single screw extruder → cooling water tank → crawler haul machine → winding machine → single screw extruder → Cooling water tank → Crawler haul machine → Winder


Applicable Material
PVC ,granule etc.



The technical specification

Model (mm)Diameter Motor Max. output (KG/H) Total Power (KVA)
SJ45 8-32mm 11kw 30kg/h 50kw
SJ65 20-50mm 22kw 60kg/h 70kw



TRADE TERMS

Delivery time: 50 working days from down payment receipt
♦ Packing: Sea-worthy package mainly with wood pallets, film and some parts in wooden case.
♦ Payment: 30% as advance payment by T/T after signing contract;
70% as balance after inspection machine before delivery by T/T
♦ Warranty: 12 month
♦ Validity: 30 days





For choosing the proper machine and saving your time,please read these bellow guides carefully

1)What kinds of plastic machinery do you need?Or what material do you want to process?

2)What capacity do you want?(kg/h)

3)What is the max and min size of the finish products?For example,the diameter of the pipe(mm)?

4)What is the electric device you need?Simens,Omron or domestic?

5)When do you want the machine?(Time for delivery)

6)Other requirements for the machine you want.



If you do need any support, please don't hesitate to contact me on
