SMP 500 Milling Plastic Machine For Plastic Production Line Plastic Auxiliary Equipment

Place of Origin Qingdao,Shandong,China
Brand Name Kechengda
Model Number SMP500
Minimum Order Quantity 1 set
Packaging Details wrapping film
Delivery Time 50 workdays
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

Plastic Production Line Milling Plastic Machine

,

SMP 500 Milling Plastic Machine

,

Plastic Auxiliary Equipment Milling Plastic Machine

Leave a Message
Product Description
                                                       PRODUCT DESCRIPTION

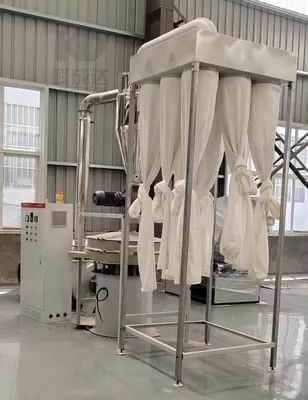

SMP500 Milling Plastic Machine Plastic Auxiliary Equipment



The PVC plastic mill itself is actually not very simple. The mill is mainly to screen the required particle size, so that the coarse material can be further re-grinded, so that it can be uniform and chatty, and it also has pollution Measures, so each component needs to play its own role in use, so that the PVC plastic mill equipment can be used normally, and the goal can be achieved. In addition to this, it is necessary to understand some conditions for the start of the PVC plastic mill equipment.

In many cases, the failure of the PVC plastic mill equipment to start is related to the operation. Whether it is hydraulic or motor start, it must be guaranteed that the start condition can be reached within the period, so that it can be started, otherwise serious consequences will occur, or even It is also dangerous to the human body.



Precautions:
1: During the use of the mill, a fixed person should take care of it, and the operator should have a technical level. Before the installation of the mill, the relevant personnel should be given technical training to understand the principle and performance of the mill and be familiar with the operating procedures.


2: In order to make the mill work normally, it is necessary to formulate the equipment "maintenance operation system" to ensure the operation of the mill, and at the same time repair tools and grease accessories.


3: After the mill has been used for a period of time, it should be overhauled, and the wearing parts such as the grinding disc should be repaired and replaced. The connecting bolts and nuts of the fixed movable knife grinding disc should be carefully checked to see if there is any looseness, whether the lubricating grease is enough, and lubrication Grease should be high temperature resistant.


4: The plastic pvc mill adds a dust collection device to reduce dust pollution, the grinding process is fully sealed, no dust leakage, fully automated, automatic feeding, discharging, and sorting and grinding gap adjustment is simple, and the host cooling system adopts Feng Shui combination Cooling down better reduces the working temperature in the machine body, and the ground material is not easy to change color, and it is also conducive to the grinding of heat-sensitive plastics. The main engine is equipped with air and water circulation cooling system.



SMP-500 Milling machine
model SMP-500
Crush the indoor diameter Φ450
Number of rotors 1
Spindle revolution 3700r/min
Motor power 37kw
Fineness 20-120mesh
Dimensions 2250/750/1600mm
Weight 1500kg



TRADE TERMS

Delivery time: 40 working days from down payment receipt
Packing: Sea-worthy package mainly with wood pallets, film and some parts in wooden case.
Payment: 30% as advance payment by T/T after signing contract;
70% as balance after inspection machine before delivery by T/T
Warranty: 12 month
Validity: 30 days



After-sale service
One year warranty, life-long maintenance;
24 hours online for technical consulting service;
Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.
