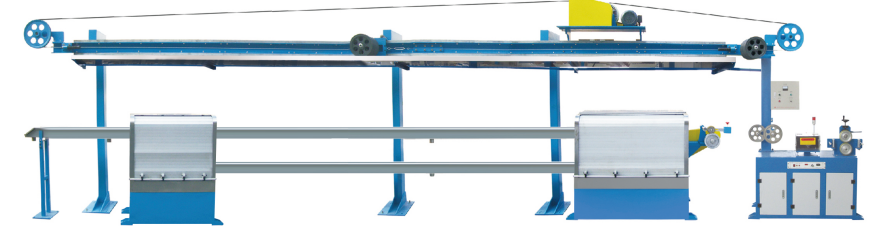

High Radiation Resistant Wire Extruder With PLC Intelligent Control For Nuclear
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Extrusion Speed:
1 – 12 M/min
Radiation Resistance:
High Radiation Resistant Design
Wire Diameter Range:
0.5 – 25 Mm
Material Compatibility:
PVC, XLPE, LSZH, And Other Radiation-resistant Compounds
Cooling System:
Stainless Steel Water Cooling Trough
Control System:
PLC Intelligent Control With Touch Screen HMI
Power Supply:
380V / 50Hz (customizable)
Lifespan:
40 – 60 Years
PLC Control:
Advanced Touch Screen With Auto Diagnostics
Operating Temperature:
-20°C To 80°C
Highlight:
High Radiation Resistant wire extruder
,PLC Intelligent Control wire extruder
,Nuclear cable extruder
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description
Radiation-Resistant Long-Life Wire Extruder Series with PLC Smart Automation
The Radiation-Resistant Long-Life Wire Extruder Series is an advanced industrial solution engineered specifically for nuclear power and high-radiation environments. This state-of-the-art extruder series combines exceptional long-term durability with intelligent PLC control to ensure precise and stable wire extrusion under extreme operating conditions. Designed for continuous operation, it delivers outstanding performance while maintaining the highest safety standards required for nuclear facilities.
Applications
Nuclear Energy & High-Radiation Environments
- Nuclear power plants
- Research reactors
- Medical nuclear equipment
- High-radiation industrial facilities
This extruder series is also suitable for specialized industrial applications that demand long-lasting, high-reliability wiring solutions.
Technical Specifications
| Machine Model | Pay-off Type | Screw Diameter | Screw L/D Ratio | Extrusion Capacity | Mainframe Power | Wire Diameter Range |
|---|---|---|---|---|---|---|
| ZD-60+35 | Active / Passive Pay-off | Ø60 mm | 26:1 | 110 kg/h | 18.5 kW | Ø1.2-10 mm |
| ZD-70+40+40 | Active / Passive Pay-off | Ø70 mm | 26:1 | 160 kg/h | 37 kW | Ø1.5-12 mm |
| ZD-80+50+50 | Active / Passive Pay-off | Ø80 mm | 26:1 | 220 kg/h | 55 kW | Ø2.0-20 mm |
| ZD-90+50 | Active / Passive Pay-off | Ø90 mm | 26:1 | 300 kg/h | 75 kW | Ø5.0-42 mm |
| ZD-100+60+60 | Active / Passive Pay-off | Ø100 mm | 25:1 | 400 kg/h | 110 kW | Ø5.0-42 mm |
| Cooling System | Capstan Power | Accumulator Type | Take-up Type | Electrical Control |
|---|---|---|---|---|
| Single Layer / Double U Type | 4 kW | Horizontal | Double-axis Axle-mounted / Bundle | Frequency Control + PLC Control |
| Single Layer / Double U Type | 4 kW | Horizontal | Double-axis Axle-mounted / Bundle | Frequency Control + PLC Control |
| Single Layer / Double U Type | 5.5 kW | Horizontal | Double-axis Axle-mounted / Bundle | Frequency Control + PLC Control |
| Single Layer / Double U Type | 7.5 kW | Horizontal | Shaftless Double Bobbin / Bonding | Frequency Control + PLC Control |
| Single Layer / Double U Type | 7.5 kW | Horizontal | Shaftless Double Bobbin / Bonding | Frequency Control + PLC Control |
Optional Equipment
Available options include: active pay-off machine, powder machine, diameter gauge, low smoke halogen-free screw, single and double bobbin take-up, and automatic coiling packaging machine.
Key Features
- Fast color change capability for efficient production transitions
- High production speed and operational efficiency
- Precisely engineered screw design for optimal performance
- Durable construction with no material sticking or dropping
- Intelligent control system with PLC integration
- User-friendly operation with enhanced humanization features
