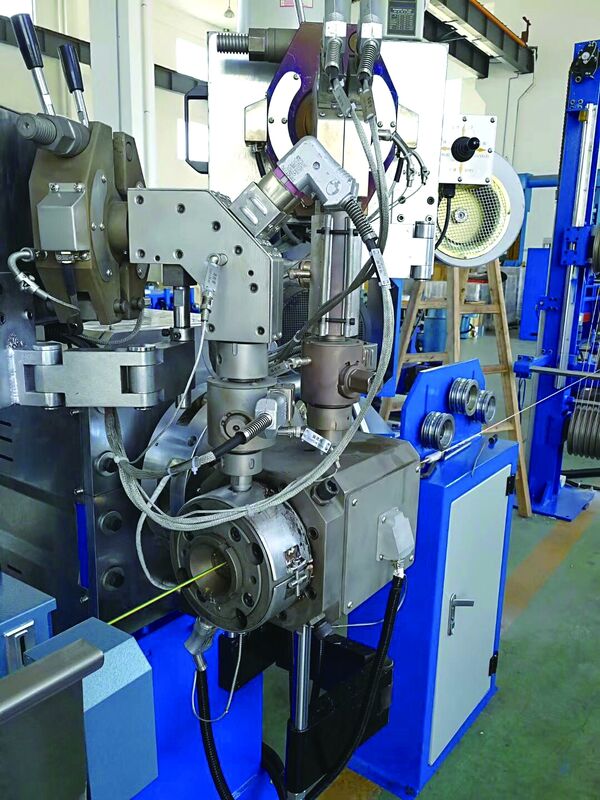

Radiation Resistant Wire Extrusion Line With PLC Automation For Nuclear Energy Systems
|
Radiation Resistant Wire Extrusion Line With PLC Automation For Nuclear Energy Systems
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Service Life Design:
≥ 40–60 Years Long Lifespan
Barrel Structural Design:
High Density Reinforced Extrusion Barrel
Screw Diameter:
45 Mm – 120 Mm (Customizable）
Extrusion Speed:
Max. 200–600 M/min (Material Dependent)
Continuous Operation Duration:
Designed For Long Term Uninterrupted Production
Insulation Thickness Tolerance:
High Precision Thickness Control
Power Supply:
380V / 50Hz (Custom Voltage Available)
Energy Consumption Optimization:
Intelligent Power Management System
Safety Interlock System:
Multi Level Automatic Protection Logic
Upgrade Capability:
Modular Hardware And Software Expansion
Highlight:
Radiation Resistant Wire Extrusion Line
,600m/min Wire Extrusion Line
,200m/min cable extrusion machine
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description
Ultra-Durable Radiation Resistant Wire Extruder Series with PLC Automation for Nuclear Energy Systems
The Ultra-Durable Radiation Resistant Wire Extruder Series with PLC Automation for Nuclear Energy Systems is a high-reliability solution developed for critical wire and cable manufacturing environments. This advanced extruder series is specifically engineered to operate under high radiation conditions while maintaining long-term mechanical stability and precise extrusion performance.
Product Overview
By integrating radiation-resistant materials with intelligent PLC automation, the system delivers consistent insulation quality and stable output over an extended operational lifespan. The equipment is designed for continuous production and meets the strict requirements of nuclear energy infrastructure.
Application Areas
This extruder series is primarily used for producing radiation-resistant wires and cables required in:
- Nuclear power plants and control systems
- Nuclear energy support facilities
- Research facilities and energy laboratories
- High-safety industrial installations
Typical products include instrumentation cables, control wires, signal transmission cables, and special power lines that must function reliably in high radiation and high safety environments.
Technical Specifications
| Machine Model | Pay-off Type | Screw Diameter | Screw L/D Ratio | Extrusion Capacity | Mainframe Power | Wire Diameter Range |
|---|---|---|---|---|---|---|
| ZD-60+35 | Active / Passive Pay-off | Ø60 mm | 26:1 | 110 kg/h | 18.5 kW | Ø1.2-10 mm |
| ZD-70+40+40 | Active / Passive Pay-off | Ø70 mm | 26:1 | 160 kg/h | 37 kW | Ø1.5-12 mm |
| ZD-80+50+50 | Active / Passive Pay-off | Ø80 mm | 26:1 | 220 kg/h | 55 kW | Ø2.0-20 mm |
| ZD-90+50 | Active / Passive Pay-off | Ø90 mm | 26:1 | 300 kg/h | 75 kW | Ø5.0-42 mm |
| ZD-100+60+60 | Active / Passive Pay-off | Ø100 mm | 25:1 | 400 kg/h | 110 kW | Ø5.0-42 mm |
| Cooling System | Capstan Power | Accumulator Type | Take-up Type | Electrical Control |
|---|---|---|---|---|
| Single Layer / Double U Type | 4 kW | Horizontal | Double-axis Axle-mounted / Bundle | Frequency Control + PLC Control |
| Single Layer / Double U Type | 4 kW | Horizontal | Double-axis Axle-mounted / Bundle | Frequency Control + PLC Control |
| Single Layer / Double U Type | 5.5 kW | Horizontal | Double-axis Axle-mounted / Bundle | Frequency Control + PLC Control |
| Single Layer / Double U Type | 7.5 kW | Horizontal | Shaftless Double Bobbin / Bonding | Frequency Control + PLC Control |
| Single Layer / Double U Type | 7.5 kW | Horizontal | Shaftless Double Bobbin / Bonding | Frequency Control + PLC Control |
Key Advantages
- Reinforced mechanical structure with radiation-resistant materials for decades of stable operation
- PLC automation system with real-time monitoring and precise process adjustment
- High-precision extrusion for uniform insulation thickness and consistent wire quality
- Significantly reduced maintenance frequency and improved operational safety
- Intelligent control system minimizes human intervention in high-risk environments
- Supports continuous operation with long-term production stability
Market Value
Designed in accordance with international nuclear industry standards, this extruder series provides long-term value for cable manufacturers and system integrators. It helps reduce lifecycle costs, ensures compliance with strict safety standards, and supports high-quality cable production for large-scale nuclear energy projects and strategic investments.
