High Radiation Resistant Cable Extruders Single Double Triple Layer Co Extrusion Line
|
High Radiation Resistant Cable Extruders Single Double Triple Layer Co Extrusion Line
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Service Life Design:
≥ 40–60 Years Long Lifespan
Radiation Resistance:
High Radiation Resistant Design
Screw Diameter:
45 Mm – 120 Mm (Customizable）
Extrusion Speed:
Max. 200–600 M/min (Material Dependent)
Cooling System:
Stainless Steel Water Cooling Trough
Control System:
PLC Intelligent Control With Touch Screen HMI
Power Supply:
380V / 50Hz (Custom Voltage Available)
Energy Efficiency:
High-Efficiency Drive And Heating System
Target Market:
Nuclear Power Plants, Energy Infrastructure Projects
Temperature Resistance:
Continuous Operating Temperature Up To 125°C
Highlight:
Double Layer cable extruders
,Triple Layer cable extruders
,Single Layer co extrusion line
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description

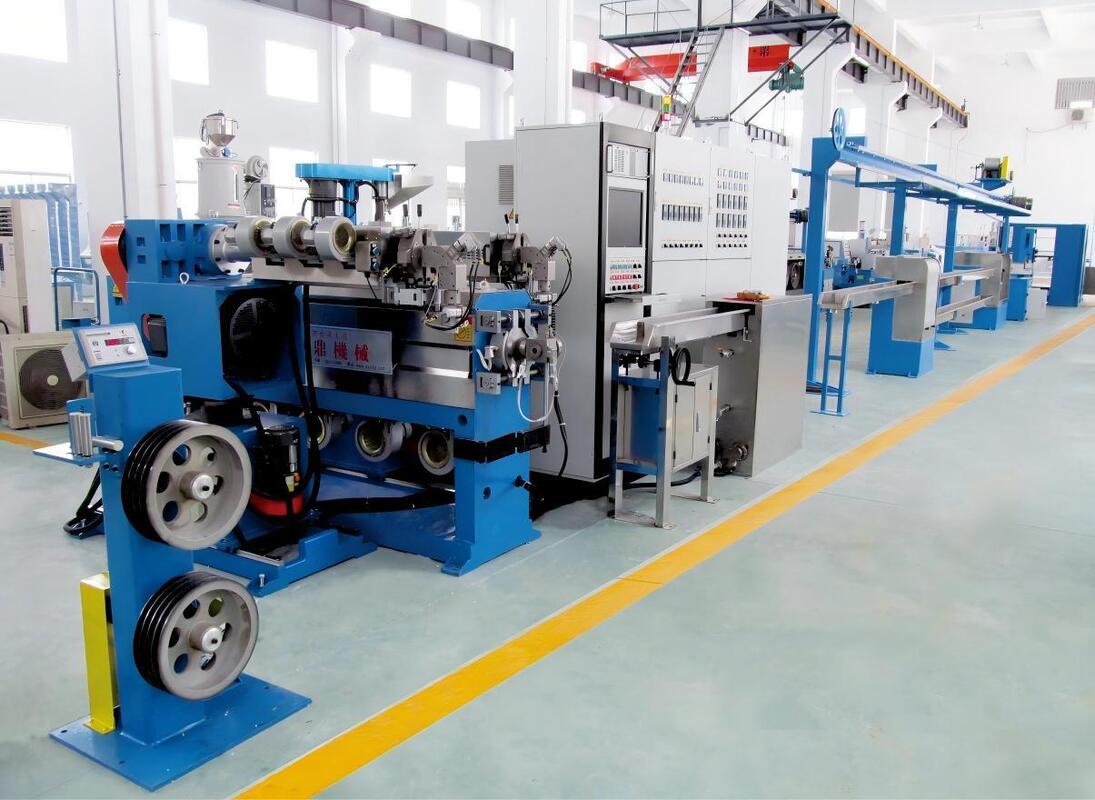

Double (Triple) Layer Co-Extrusion Extrusion Line - Nuclear Power High-Lifespan Wire Extruder
Application
This extrusion line is suitable for single, double, and triple layer co-extrusion of PVC, LDPE, NYLON, LSOH, and other insulating materials.
Equipment Composition
The complete system includes: pay-off machine, straightener, main machine, water trough, cable storage rack, traction device, and take-up machine.
Technical Parameters
| Machine Model | Pay-off Type | Screw Diameter | Screw L/D Ratio | Extrusion Capacity | Mainframe Power | Wire Diameter Range |
|---|---|---|---|---|---|---|
| ZD-60+35 | Active / Passive Pay-off | Ø60 mm | 26:1 | 110 kg/h | 18.5 kW | Ø1.2-10 mm |
| ZD-70+40+40 | Active / Passive Pay-off | Ø70 mm | 26:1 | 160 kg/h | 37 kW | Ø1.5-12 mm |
| ZD-80+50+50 | Active / Passive Pay-off | Ø80 mm | 26:1 | 220 kg/h | 55 kW | Ø2.0-20 mm |
| ZD-90+50 | Active / Passive Pay-off | Ø90 mm | 26:1 | 300 kg/h | 75 kW | Ø5.0-42 mm |
| ZD-100+60+60 | Active / Passive Pay-off | Ø100 mm | 25:1 | 400 kg/h | 110 kW | Ø5.0-42 mm |
| Cooling System | Capstan Power | Accumulator Type | Take-up Type | Electrical Control |
|---|---|---|---|---|
| Single Layer / Double U Type | 4 kW | Horizontal | Double-axis Axle-mounted / Bundle | Frequency Control + PLC Control |
| Single Layer / Double U Type | 4 kW | Horizontal | Double-axis Axle-mounted / Bundle | Frequency Control + PLC Control |
| Single Layer / Double U Type | 5.5 kW | Horizontal | Double-axis Axle-mounted / Bundle | Frequency Control + PLC Control |
| Single Layer / Double U Type | 7.5 kW | Horizontal | Shaftless Double Bobbin / Bonding | Frequency Control + PLC Control |
| Single Layer / Double U Type | 7.5 kW | Horizontal | Shaftless Double Bobbin / Bonding | Frequency Control + PLC Control |
Optional Equipment
Available options include: active pay-off machine, powder machine, diameter gauge, low smoke halogen-free screw, single and double bobbin take-up, and automatic coiling packaging machine.
Key Features
- Fast color change capability for efficient production transitions
- High production speed and operational efficiency
- Precisely engineered screw design for optimal performance
- Durable construction with no material sticking or dropping
- Intelligent control system with PLC integration
- User-friendly operation with enhanced humanization features
