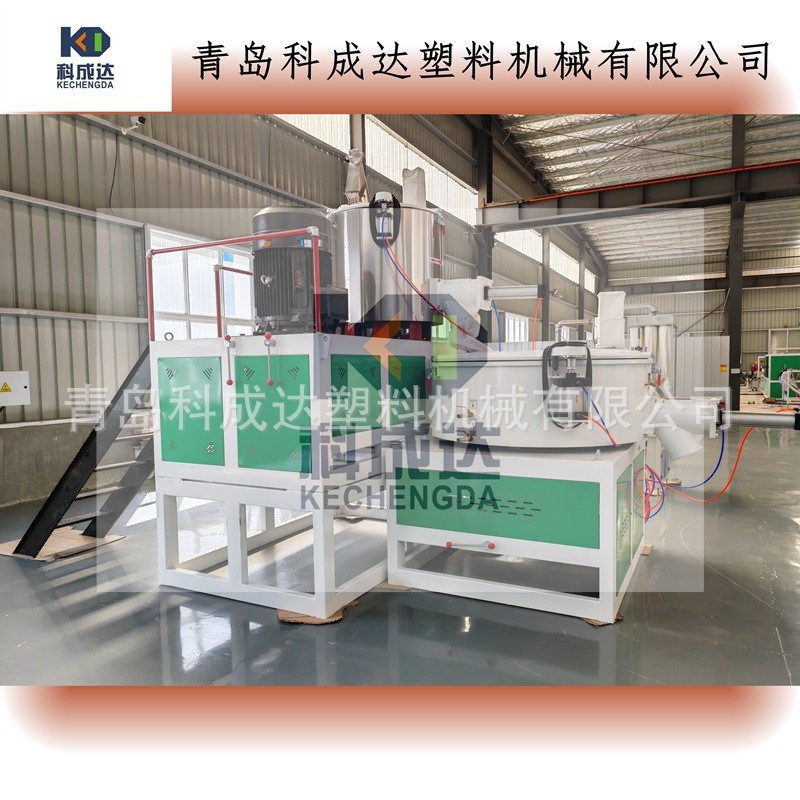

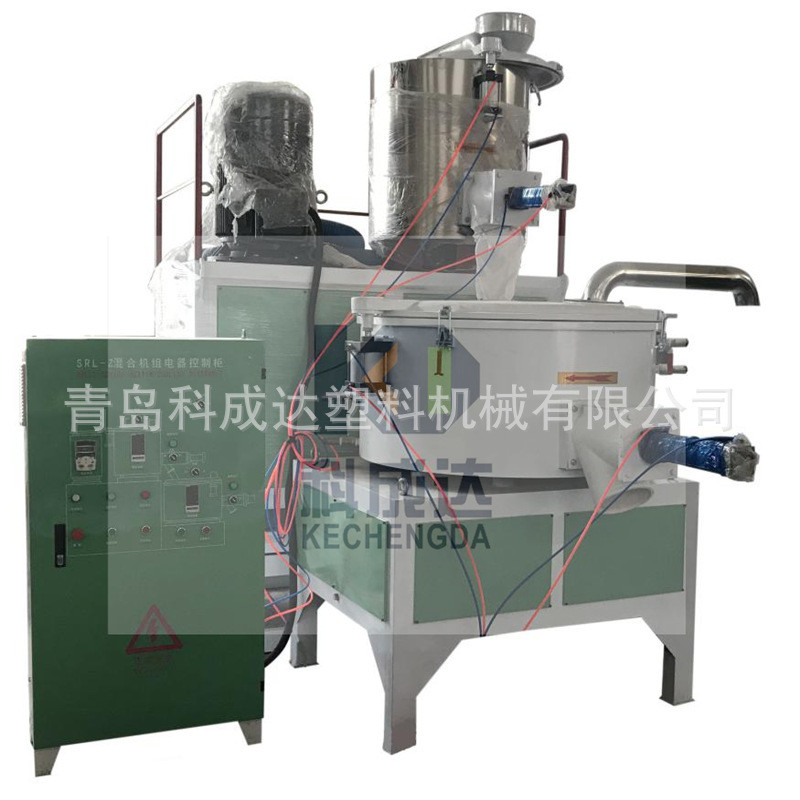

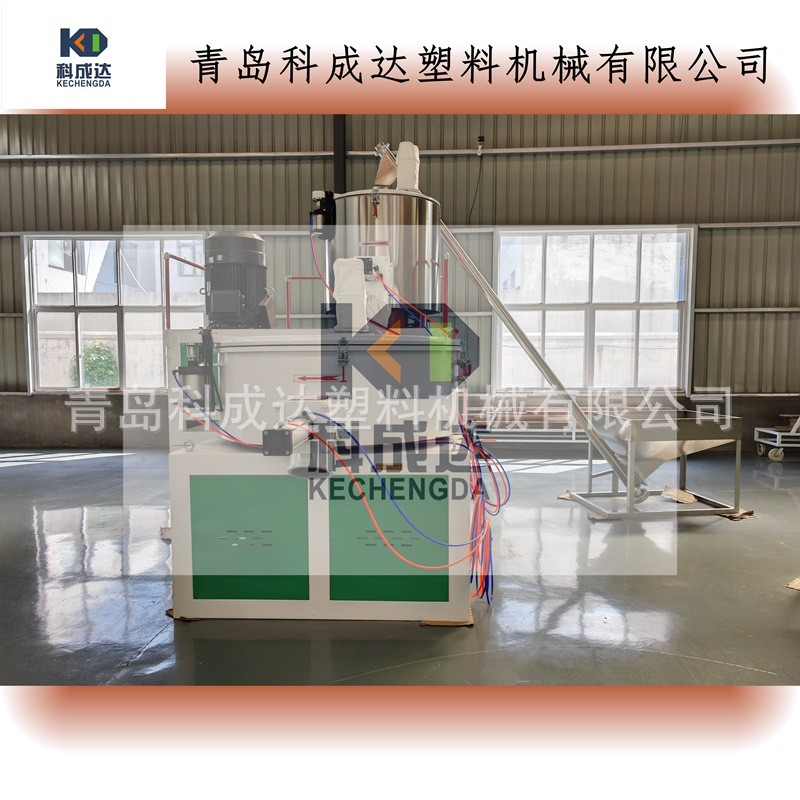

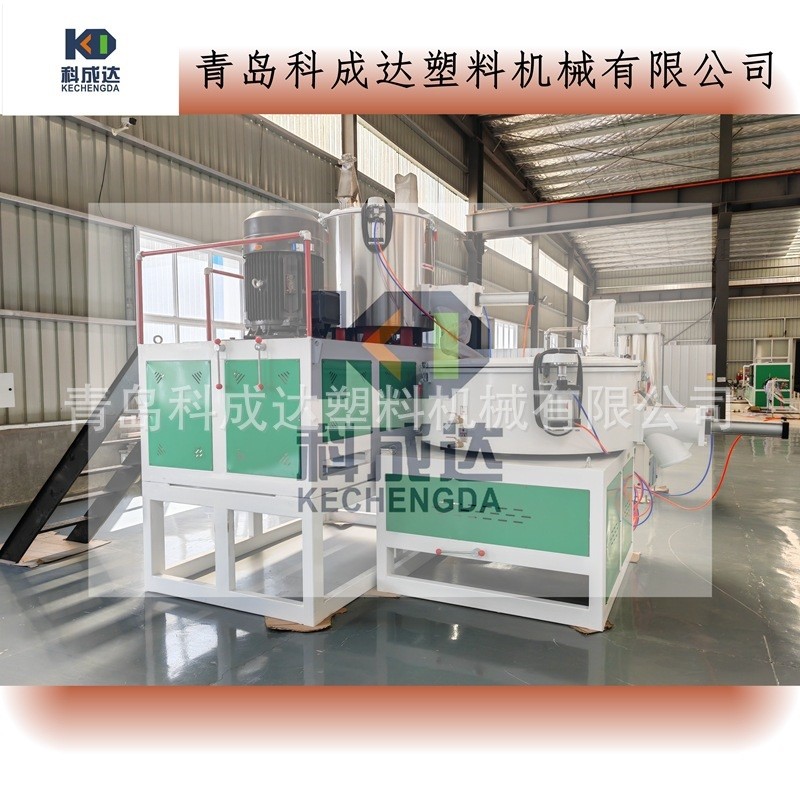

PVC Powder Compound Hot Cold Mixing Unit , Plastic PVC Mixer Machine

Place of Origin Shandong, China
Brand Name kechengda
Model Number SRL-Z 500/1000
Minimum Order Quantity 1
Price USD 11000~17000
Packaging Details wrapping film
Delivery Time 35 Working days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Automatic Grade Automatic Voltage 380/415/440V
Name PVC Hot Cold Mixer Machine Keywords Plastic High Speed Mxier
Heating Method Electric Heating Cooling Method Water Cooling
Dimension(L*W*H) 3860*3000*3600mm
Leave a Message
Product Description

We have series of various plastic PVC hot and cold compound mixer machine:

1. SRL-Z series PVC hot and cold compound mixer machine, SRL-Z 200/500, SRL-Z300/600, SRL-Z500/1000, SRL-Z800/1600, SRL-Z800/2000, SRL1000/3000, etc.

2. SHR series PVC hot and cold compound mixer machine, SHR200A, SHR300A, SHR500A, SHR-800A, SHR-1000A.


Application Features:

SRL-Z series plastic PVC hot and cold mixer machine is applicable for mixing, colouring and drying of various resin such as poly, PE, PP, PVC polypropylene, poly chloride etc.


Plastic PVC hot and cold compound mixer machine combines hot mixer and cooler mixer togther. The material will get into cooler mixer for cooling automatically when they finish heating, exhausts remaining gases and avoids agglomeration. Through setting the time or temperature, the machine can be operated automatically.


Plastic PVC hot and cold compound mixer machine is developed by importing and absorbing foreign advanced technology. By adopting PLC control, it features high automatic level, good mixing effect, complete function, compact structure and beautiful appearance. It is the ideal equipment for plastic mixing.


Two layers of sealing is adopted in the pot cover, pot cover of cooling machine adopts arch cover, which can avoid deforming, It has features of contact construction, good performance.

Main Parameter of PVC hot and cold compound mixer machine:

Model SRL-Z200/500 SRL-Z300/600 SRL-Z500/1000 SRL-Z800/1600
Volume (L) 200/500 300/600 500/1000 800/1600
Effective capacity (L) 150/320 225/380 330/640 600/1050
Rotation speed (rpm) 475/950/130 475/950/100 430/860/50 370/740/50
Mixing time (min) 8-12 8-12 8-15 8-15
Motor power (KW) 30/42/11 40/55/11 55/75/15 83/110/22
Overall dimension (mm) 4580*2240*2470 4800*2640*2480 5600*3000*3100 5170*3200*4480
Weigth (KG) 3400 3600 6500 9800
