CE PVC WPC Door Extrusion Machine Complete Turnkey Wood Plastic Composite Door Board

Place of Origin Qingdao,Shandong,China
Brand Name Kechengda
Model Number SJSZ80,92
Minimum Order Quantity 1
Price usd80000-200000/set
Packaging Details wrapping film
Delivery Time 35 work days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Screw Design Double-screw Plastic Processed PVC, WPC, Wood-plastic
Application Sheet, Profile, Plates Applicable Industries Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Voltage 380V 50HZ 3Phase(Customized) PVC WPC Door Machine Machine For Making Windows And Doors
High Light

WPC Door Extrusion Machine

,

CE PVC Door Extrusion Machine

Leave a Message
Product Description

CE Certificated PVC WPC Door Making Extrusion Machine Line Complete Turnkey Wood Plastic Composite Door Board

The PVC wood-plastic door panel production line is an automated production equipment used to manufacture PVC wood-plastic composite door panels. PVC wood plastic door panel is a new type of door panel material made by co extrusion of PVC (polyvinyl chloride) and wood fibers (such as wood powder, rice husk, etc.). The following is a general introduction to the PVC wood plastic door panel production line:

Model Width(mm) Main Motor Production capacity Total Power
SJSZ80 600-800 75KW 350KG/H 180KW
SJSZ92 800-1200 110KW 700KG/H 220KW

1. Raw material processing: The PVC wood-plastic door panel production line begins with the raw material processing process. PVC particles, wood fibers, and other additives (such as stabilizers, lubricants, etc.) are fed into a mixer or mixing equipment for thorough mixing and uniform dispersion. The mixed raw materials form PVC wood-plastic composite materials.

2. Extruder: The mixed PVC wood plastic composite material is transported to the extruder. The extruder heats the composite material to a molten state and extrudes the melted material into a continuous profile shape of the door panel through the action of the extruder's screws and cylinder.

3. Cooling and shaping: The extruded thermoplastic composite material passes through a cooling water tank and rapidly cools and solidifies through the action of cooling water. The cooled door panel material can be further shaped through a shaping device to obtain the desired shape and texture.

4. Cutting and processing: The shaped door panel material is cut by a cutting machine to the required length and size as needed. Then, the door panel can undergo surface treatment, punching, carving and other processing techniques to meet different design and decoration needs.

The PVC wood plastic door panel production line is usually automated and can be customized and adjusted according to needs. The scale and production capacity of the production line can be designed according to demand, and there are different configuration options from small production lines to large factories.

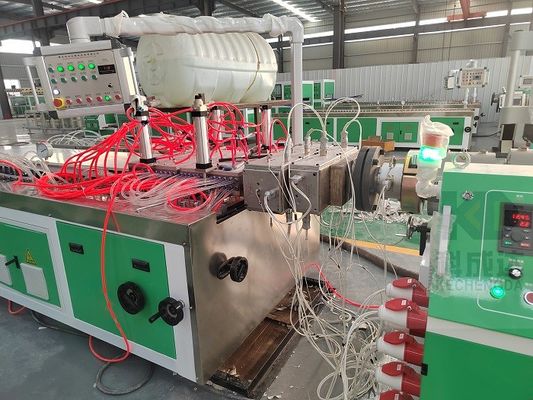

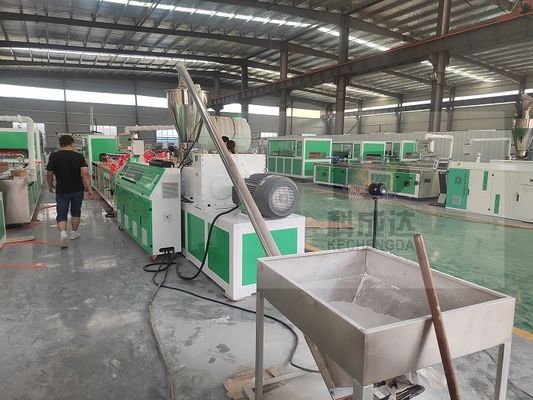

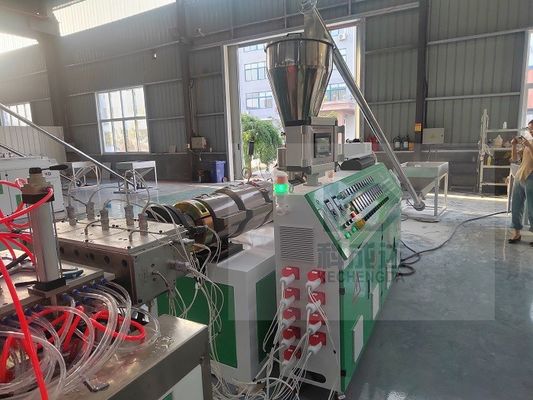

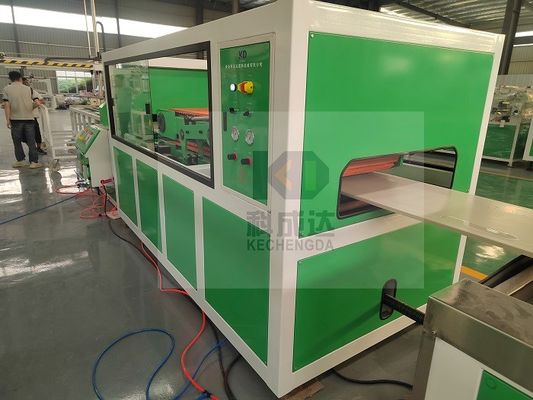

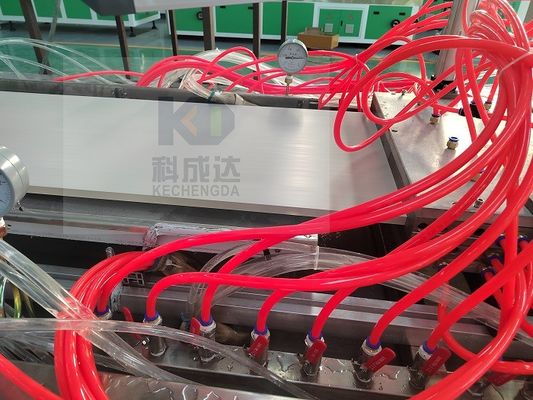

CE PVC WPC Door Extrusion Machine Complete Turnkey Wood Plastic Composite Door Board 0CE PVC WPC Door Extrusion Machine Complete Turnkey Wood Plastic Composite Door Board 1CE PVC WPC Door Extrusion Machine Complete Turnkey Wood Plastic Composite Door Board 2CE PVC WPC Door Extrusion Machine Complete Turnkey Wood Plastic Composite Door Board 3CE PVC WPC Door Extrusion Machine Complete Turnkey Wood Plastic Composite Door Board 4

Overall, the PVC wood-plastic door panel production line has achieved an efficient, stable, and reliable PVC wood-plastic door panel production process through processes such as raw material processing, extrusion, cooling and shaping, cutting processing, and quality control. These door panels have the advantages of PVC and wood fibers, such as water resistance, corrosion resistance, and woody texture, and are widely used in indoor doors, bathroom doors, kitchen cabinet doors, and other fields.

PAYMENT TERMS
30% of total amount should be paid by T/T as down payment. The balance (70% of total amount) should be paid before delivery by T/T or irrevocable L/C by payment (at sight)
三,Delivery conditions
1. delivery condition: FOB Qingdao port.
2. delivery term: within 45 working days after receipt of down payment, the seller should inform the buyer to do inspection. The seller should finish packing of goods and ready for shipment within 15 working days after the seller receipt the full payment.
3. supervision of loading: the seller should inform the buyer exacting loading time, the buyer should arrange for supervision of loading!
四,INSPECTION
The seller should inform the buyer to do inspection before shipment, the seller guaranty good performance of all the sold goods. The seller undertake the material cost for the machine inspection in seller's factory. The buyer should come to seller's factory to do the inspection work, or the buyer could entrust any third part to come to seller's factory to do the inspection work.
五,INSTALLATION
The seller should send engineer to buyer's factory for machine installation and testing. Buyer should undertake all the traveling costs for engineer (such as hotel, air tickets and food) and engineer salary 200 USD/day/engineer. If engineers can't go to customer's factory for machine installation, the seller should provide online video calling service to guide customer for machine installation and running.
