2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line

Place of Origin Qingdao,Shandong,China
Brand Name Kechengda
Model Number SJ-90 150 180 200
Minimum Order Quantity 1
Price USD30000-500000
Packaging Details wrapping film
Delivery Time 35 work days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Screw No. Multi-screw Control PLC
Computerized Computerized Automation Automatic
Product Type Extrusion Molding Machine Main Motor Siemens
High Light

2000mm plastic sheet making machine

,

2200mm plastic sheet making machine

,

Automatic ps foam sheet extrusion line

Leave a Message
Product Description

Plastic Sheet/Plate/Floor/ PP/PS/PE/PVC/Pet/ABS Production Line Single Conical Extruder Extrusion Making Machine



Product Description:



PS ABS PP PE HDPE Sheet Production Line Plastic Sheet Extruder Extrusion Machine


This line is specially used for producing PP/PE/PS/ABS single layer or multi-layer sheet or plate, suitable in the fields of packaging, stationery, chemicals, construction, household appliances and so on.
Main technical data:

1. Usual sheet width:
700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm

2. Usual Sheet thickness:

0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm

3. Extruder: Special screw structure, imported world-known thermocontrollers, electronics, hard gear face reducers to ensure high effective material extrusion capacity.

4. T -type die head:
Suitable compression ratio to ensure uniform flow stability.

5. Three-roller calendar:
According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control using a unique flow channel, so that the stability of uniform distribution roller. The independent oil temperature control for three roller to ensure more stable and exact control.

6. Cooling frame:

According to product specifications, configurations with different specifications of the stainless steel cooling roller

7. Edge-cutting devices:

Trimming can be divided into manual and automatic, three-dimensional configuration tool adjustment device, width adjustable.

8. Cut off machine:

Saw cutting or knife cutting, thin type and non-friable type sheet generally usually knife cut, adopted high-quality alloy cutting tools, sharp and durable.



NO. Item Unit Quantity
1 Conical Twin Screw Extruder set 1
2 Extrusion Mould, T-die set 1
3 Three roller Calender set 1
4 Roller bracket set 1
5 Haul-off unit set 1
6 Torque winding machine set 1
7 Cutting machine set 1
8 Tipping bracket set 1
9 Mixer 200/500,300/600, 500/1000 set 1

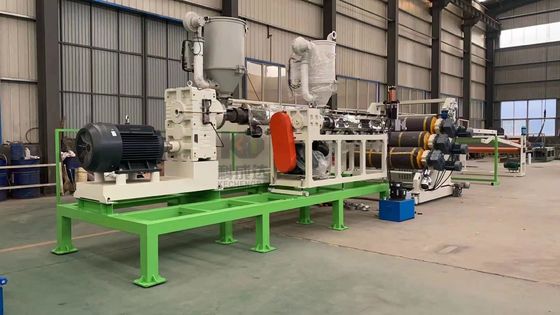

Production line photos



2000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line 02000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line 12000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line 22000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line 32000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line 42000mm 2200mm Plastic Sheet Making Machine Automatic Ps Foam Sheet Extrusion Line 5
