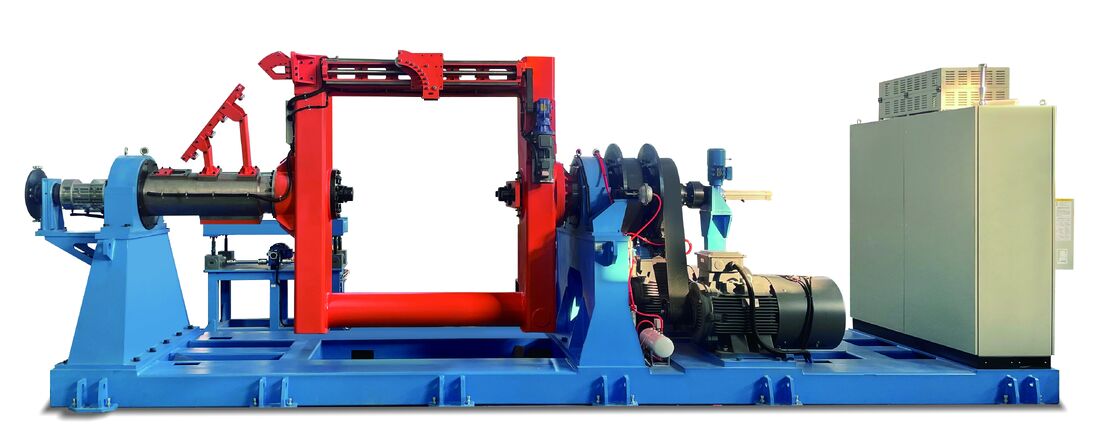

1250-1600mm Steel Wire Armoring Single Stranding Machine With Automatic Tension Control
|
1250-1600mm Steel Wire Armoring Single Stranding Machine With Automatic Tension Control
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Armoring Structure:
Single Wire Armoring
Application:
Steel Wire Armoring For Power And Submarine Cables
Reel Diameter Range:
Φ1250 Mm – Φ1600 Mm
Armoring Speed:
Max. 300–600 RPM (Material Dependent)
Tension Control:
Automatic Constant Tension Control
Pay-Off Type:
Heavy-Duty Reel Pay-Off
Take-Up Type:
Heavy-Duty Reel Take-Up
Control System:
PLC Control With Touch Screen HMI
Safety Protection:
Full Safety Cover And Emergency Stop System
Energy Efficiency:
Optimized Drive System, Reduced Energy Consumption
Highlight:
1250mm stranding machine
,1600mm stranding machine
,Single stranding machines
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description
Φ1250-Φ1600 Steel Wire Armoring Single Stranding Machine
Key Features
- Single winch functions as pay-off/take-up machine or single winch machine
- Dual machine simultaneous operation capability
- Multi-purpose design enhances productivity
- Contract cable twisting in single operation or reverse cable multiple times
- Active untwisting function in pay-off system
- Cable formation and take-up with no traction structure
- Encoder meter and velocity measuring device for automatic line speed correction
- Stable take-up pitch maintenance
- Independent electric screw lifting for upper and lower wire reel components
Applications
Designed for laying low-voltage power supplies, instrument control cables, soft copper/aluminum conductors, and wire armoring of insulated wires and cables.
Technical Parameters
| Bobbin Diameter | Final Twisting Diameter | Drive Way | Clamping Way of Wire Bobbin | Main Motor Power | Max. Speed | Bobbin Holder | Cradle Bracket Way |
|---|---|---|---|---|---|---|---|
| Ø1250 | 5-16 mm | Self-governed Motor Drive | Motor Screw Rod | 75 kW | 230 rpm | Shaftless | Open Way |
| Ø1600 | 12-30 mm | Self-governed Motor Drive | Motor Screw Rod | 90 kW | 320 rpm | Shaftless | Open Way |
Product Advantages
The Φ1250 to Φ1600 Steel Wire Armoring Single Stranding Machine delivers superior performance for modern cable production. Its robust mechanical structure ensures precise wire tension control and uniform armoring quality. Advanced automation enhances production efficiency while minimizing labor requirements. As a core component of the Cable Machine Series, this equipment features user-friendly operation and maintenance protocols to reduce downtime. High-durability components guarantee long-term reliability under demanding operational conditions. Flexible configuration options accommodate diverse cable designs and international production standards.
Global Market and Industry Value
Engineered for the global cable manufacturing sector, this machine serves customers across Europe, Asia, the Middle East, Africa, and the Americas. It complies with international cable production standards and supports large-scale industrial manufacturing operations. With growing worldwide demand for reliable power and communication infrastructure, the Cable Machine Series plays an increasingly vital role in advancing cable production technology. The Φ1250 to Φ1600 Steel Wire Armoring Single Stranding Machine provides manufacturers with a dependable solution to improve product quality and expand production capacity. This professional armoring system combines precision engineering, operational efficiency, and exceptional durability, making it the ideal choice for manufacturers seeking advanced technology and consistent performance in steel wire armored cable production worldwide.
