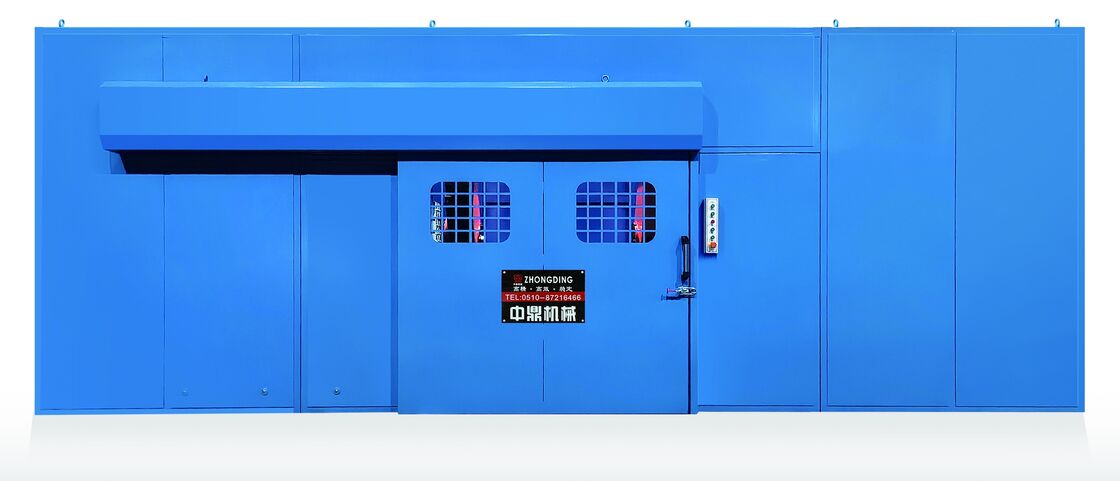

PLC Controlled Steel Wire Armoring Machine With Automatic Tension Control
|
PLC Controlled Steel Wire Armoring Machine With Automatic Tension Control
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Armoring Structure:
Single Wire Armoring
Application:
Steel Wire Armoring For Power And Submarine Cables
Reel Diameter Range:
Φ1250 Mm – Φ1600 Mm
Maximum Strand Number:
24
Tension Control:
Automatic Constant Tension Control
Power Supply:
380V / 50Hz
Cable Types:
Power, Armored Communication, Control
Control System:
PLC Control With Touch Screen HMI
Operating Temperature Range:
0-45°C
Optional Features:
Safety Sensors, Automatic Lubrication
Highlight:
Steel armoring machine
,Wire armoring machine
,PLC Controlled cable armouring machine
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description
Steel Wire Armoring Single Stranding Cable Machine Series
Φ1250-Φ1600 Steel Wire Armoring Single Stranding Machine with PLC and Automatic Tension Control
Key Features
- Single winch functions as pay-off/take-up machine or single winch machine
- Dual machine simultaneous operation capability
- Multi-purpose design enhances productivity
- Contract cable twisting in single operation or reverse cable multiple times
- Active untwisting function in pay-off system
- Cable formation and take-up with no traction structure
- Encoder meter and velocity measuring device for automatic line speed correction
- Stable take-up pitch maintenance
- Independent electric screw lifting for upper and lower wire reel components
Applications
The Cable Machine Series is suitable for manufacturing power cables, armored communication cables, control cables, and specialized industrial wiring. Its precision and high-speed capability make it ideal for cable plants, electrical infrastructure projects, and facilities requiring continuous and reliable armored wire production.
Technical Parameters
| Bobbin Diameter | Final Twisting Diameter | Drive Way | Clamping Way of Wire Bobbin | Main Motor Power | Max. Speed | Bobbin Holder | Cradle Bracket Way |
|---|---|---|---|---|---|---|---|
| Ø1250 | 5-16 mm | Self-governed Motor Drive | Motor Screw Rod | 75 kW | 230 rpm | Shaftless | Open Way |
| Ø1600 | 12-30 mm | Self-governed Motor Drive | Motor Screw Rod | 90 kW | 320 rpm | Shaftless | Open Way |
Product Advantages
High Precision Stranding: Ensures consistent wire armoring quality across all production runs.
PLC Automation: Provides intelligent control, error detection, and streamlined workflow.
Automatic Tension Control: Maintains uniform wire tightness and prevents production defects.
Robust Construction: Heavy-duty steel frame guarantees long-term stability and minimal maintenance.
Versatile Applications: Capable of handling a wide range of cable diameters and types, suitable for diverse industrial needs.
Global Market and Industry Value
Engineered for the global cable manufacturing sector, this machine serves customers across Europe, Asia, the Middle East, Africa, and the Americas. It complies with international cable production standards and supports large-scale industrial manufacturing operations. With growing worldwide demand for reliable power and communication infrastructure, the Cable Machine Series plays an increasingly vital role in advancing cable production technology. The Φ1250 to Φ1600 Steel Wire Armoring Single Stranding Machine provides manufacturers with a dependable solution to improve product quality and expand production capacity. This professional armoring system combines precision engineering, operational efficiency, and exceptional durability, making it the ideal choice for manufacturers seeking advanced technology and consistent performance in steel wire armored cable production worldwide.
