380V Heavy Duty Automated Double Twist Stranding Machine With PLC Automation
|
380V Heavy Duty Automated Double Twist Stranding Machine With PLC Automation
| Place of Origin | China |
| Brand Name | Zhongding |
Product Details
Machine Type:
Heavy Duty Automated Double Twist Stranding System
Stranding Type:
Double Twist, Multi-Layer
Maximum Stranding Capacity:
1250 Mm² (ZD-1250), 1600 Mm² (ZD-1600)
Power Supply:
380V 50Hz Or Customized
Maximum Spindle Speed:
Up To 2000rpm
Tension Control:
Automatic Electronic Tension Regulation
Production Mode:
Continuous High Speed Operation
Control System:
PLC Automation With HMI Touchscreen
Wire Material Compatibility:
Copper, Aluminum, Copper Alloy
Machine Structure:
Reinforced Industrial Steel Frame
Highlight:
Double Twist Stranding Machine
,Double Twist Stranding Machine
,2000rpm stranding machines
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
L/C, T/T, D/P, D/A
Product Description
Heavy-Duty Automated Double Twist Stranding Machine for Diverse Cable Manufacturing
Product Overview

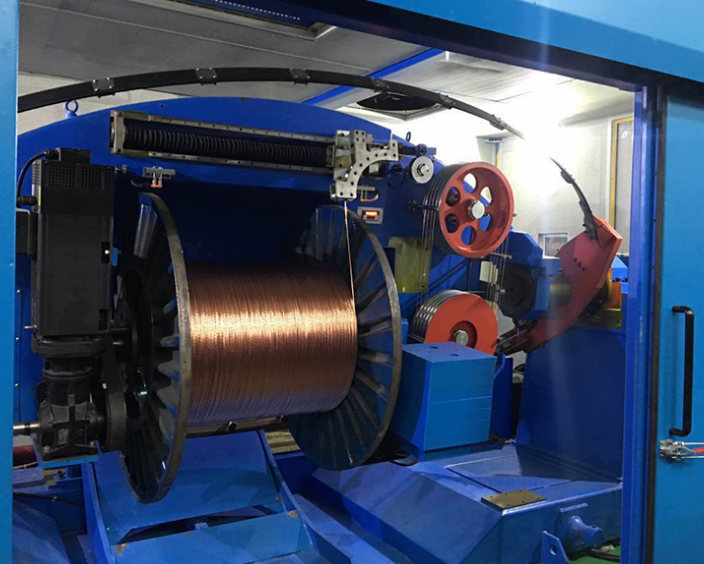

ZD-1250/1600 Double Twist Stranding Machine
Application
The Heavy-Duty Automated Double Twist Stranding Machine is suitable for cable manufacturers serving energy infrastructure, construction, industrial automation, transportation, and communication sectors. This Double Twist Stranding Machine supports a wide range of conductor diameters and stranding configurations, making it adaptable to both standardized and customized cable production. Its stable operation and high throughput make it ideal for factories operating multi-shift or continuous production lines.
Technical Features
- The rotary bow is made of imported carbon fiber, which can be replaced with spring steel bow piece to adapt to higher load according to production needs.
- The electric lifting platform is arranged below the ground below the machine platform, facilitating quick and easy bobbin loading and unloading.
- The entire machine utilizes HMI+PLC control system, with computer preset twisting pitch and twisting direction for synchronized speed control.
Technical Parameters
| Parameter | ZD-φ1250 | ZD-φ1600 |
|---|---|---|
| (Al)/(Cu) wire diameter | φ1.0-3.0 mm | φ1.0-3.8 mm |
| Stranded section | 3.5-70 mm² | 16-90 mm² |
| Stranded section (1+6) | 3.5-50 mm² | 16-120 mm² |
| Compression cross section (CA) | 3.5-50 mm² | 16-150 mm² |
| Compression cross section (A1) | 3.5-70 mm² | 16-240 mm² |
| Maximum cable diameter | φ10 mm | φ16 mm |
| Maximum compression | 85-90% | 76-97% |
| Maximum line speed | 70-150 m/min | 170-220 m/min |
| Stranded outer diameter | φ15 mm Max | φ25 mm Max |
| Turning speed | 800 rpm Max | 500 rpm Max |
| Winch range | 40-350 mm | 50-600 mm |
Advantages
High Structural Strength: Heavy duty frame design ensures vibration resistance and long service life.
High Production Efficiency: Double twist technology increases output while maintaining precise strand quality.
Automated Precision Control: PLC system enables accurate speed tension and pitch adjustment.
Wide Compatibility: Suitable for multiple cable types and conductor sizes.
Lower Operating Costs: Automated operation reduces labor input and maintenance downtime.
The Heavy-Duty Automated Double Twist Stranding Machine provides a powerful combination of durability, efficiency, and precision. As a reliable Double Twist Stranding Machine, it enables manufacturers to expand production capacity while maintaining consistent quality standards in demanding industrial environments.
Global Market Focus
The ZD-1250/1600 Double Twist Stranding Machine is a high-performance solution for cable manufacturers worldwide. Its precision, efficiency, and versatility make it suitable for global production environments, from small-scale operations to large industrial cable factories. With its advanced stranding technology and user-friendly control system, this Stranding Machine is positioned as a preferred choice for the international cable industry.
