MIDTECH Plastic CPVC UPVC PVC Water Supply Drainage Pipe Tube Production Line Machinery for Sale

  • MIDTECH Plastic CPVC UPVC PVC Water Supply Drainage Pipe Tube Production Line Machinery for Sale
  • MIDTECH Plastic CPVC UPVC PVC Water Supply Drainage Pipe Tube Production Line Machinery for Sale
  • MIDTECH Plastic CPVC UPVC PVC Water Supply Drainage Pipe Tube Production Line Machinery for Sale
  • MIDTECH Plastic CPVC UPVC PVC Water Supply Drainage Pipe Tube Production Line Machinery for Sale
  • MIDTECH Plastic CPVC UPVC PVC Water Supply Drainage Pipe Tube Production Line Machinery for Sale
  • MIDTECH Plastic CPVC UPVC PVC Water Supply Drainage Pipe Tube Production Line Machinery for Sale
Place of Origin Qingdao，Shandong
Brand Name Kechengda
Model Number SJSZ-51/105 65/132 80/156
Minimum Order Quantity 1
Price USD 35000~100000
Packaging Details wrapping film
Delivery Time 30 work days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Screw Design Double Screw Plastic Processed PVC
Key Selling Points Energy Saving Core Components Bearing, Motor, Pump, Gear, PLC, Gearbox, Screw
Machinery Test Report Provided Screw Material 38CrMoALA
Screw Diameter (mm) 80
Highlight

MIDTECH PVC Pipe Production Line

,

Drainage PVC Pipe Production Line

,

CPVC PVC Pipe Production Line
Leave a Message
Product Description

Plastic CPVC UPVC PVC Pipe Tube Production Line

>>PVC Plastic pipe making machine is mainly used in the production of Agricultural water supply & water discharge system, architectural water supply & discharge system, wire laying system, etc. purposes. >>The unit consists of Conical (Parallel) double screw extruder-PVC pipe mold-Vacuum forming tank-Haul-off machine-Cutting machine-Stacker/Belling machine. >>And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing. >>Process Flow: Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank → Four claws Haul-off → Planetary Saw Cutter → Belling machine/ Tripping Table → Final Product Inspecting &Packing

Product Paramenters
Diameter ranges(mm)
Extruder model
Max. Capacity(kg/h)
Max. lineal speed(m/min)
Extruder motor power(kw)
16-32 (4-cavities)
SJSZ65/132
300
10*4
37
20-63 (Dual)
SJSZ65/132
300
15*2
37
50-160
SJSZ65/132
300
8
37
75-250
SJSZ80/156
500
6
55
110-315
SJSZ80/156
500
4
55
75-160 (Dual)
SJSZ92/188
850
6
110
315-630
SJSZ92/188
850
1.2
110
Technical Parameter of Main extruder
Model
Power
(kw)
Screw Diameter (mm)
Screw Qty.
Designed Output (kg/h)
Dimension(L*W*H)
(mm)
SJSZ-45/90
15
Φ45/90
2
70
3360x1290x2127
SJSZ-51/105
18.5
Φ51/105
2
100
3360x1290x2127
SJSZ-55/110
22
Φ55/110
2
150
3620x1050x2157
SJSZ-65/132
37
Φ65/132
2
300
3715x1520x2450
SJSZ-80/156
55
Φ80/156
2
400
4750x1550x2460
SJSZ-92/188
110
Φ92/188
2
750
6725x1550x2814

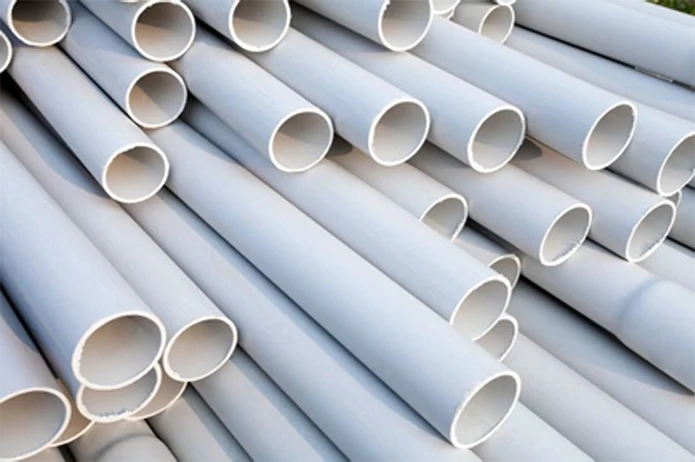

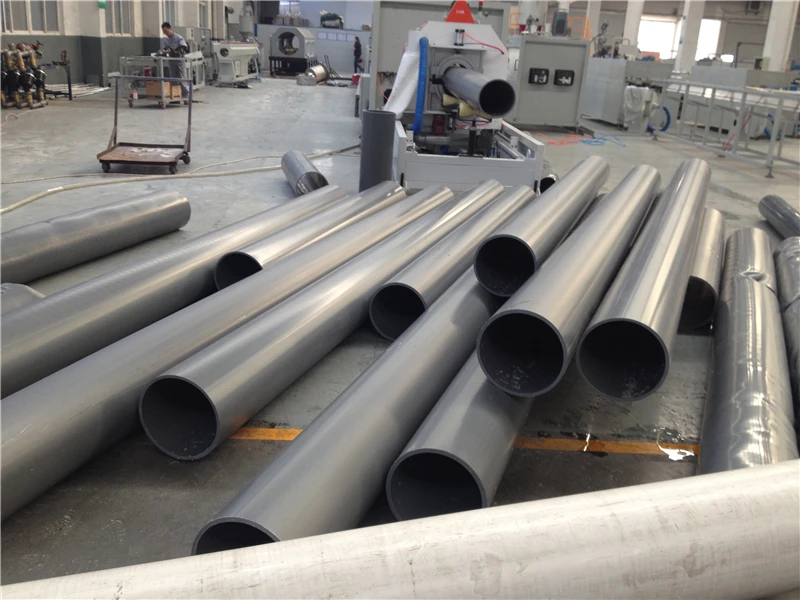

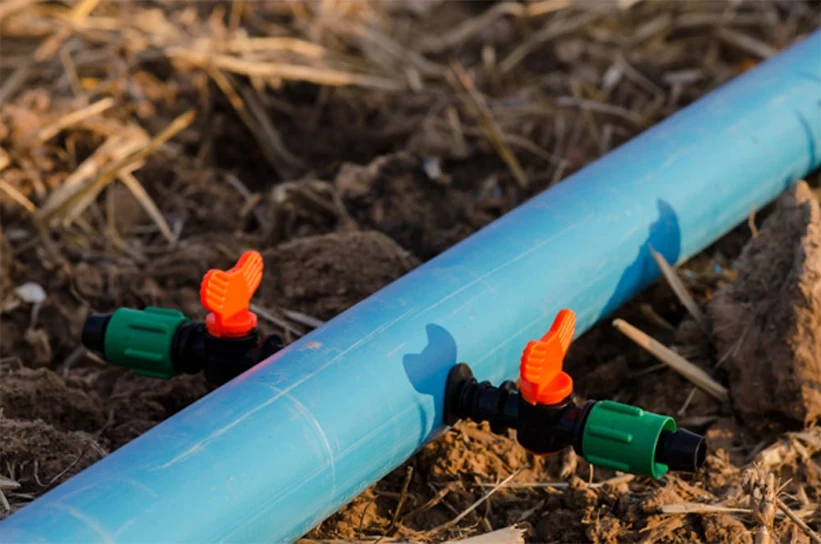

Application
MIDTECH Plastic CPVC UPVC PVC Water Supply Drainage Pipe Tube Production Line Machinery for Sale 0
MIDTECH Plastic CPVC UPVC PVC Water Supply Drainage Pipe Tube Production Line Machinery for Sale 1
MIDTECH Plastic CPVC UPVC PVC Water Supply Drainage Pipe Tube Production Line Machinery for Sale 2
