High Speed HDPE PP PE Single Wall Medical Corrugated Pipe Production Line/HDPE Crate Pipe Production Line

Place of Origin Qingdao,Shandong,China
Brand Name Kechengda
Model Number SJSZ-65 75 90 120
Minimum Order Quantity 1
Price USD 70000~1000000
Packaging Details wrapping film
Delivery Time 35 work days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Screw Design Single-screw Screw L/D Ratio 30:1
Condition New Plastic Processed PE, PVC
Application PIPE Weight 5 KG
Warranty 1 Year Key Selling Points High Productivity
Applicable Industries Manufacturing Plant Video Outgoing-inspection Provided
Warranty Of Core Components 1 Year Core Components Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw
Machinery Test Report Provided Screw Material 38CrMoALA
Screw Diameter (mm) 65 Screw Speed (rpm) 75 Rpm
Voltage 380V 50HZ 3phase Or Customized Power (kW) 65
Capacity 100kg/h Color Customized
High Light

PP Pipe Production Line

,

HDPE Pipe Production Line

,

PE Pipe Production Line

Leave a Message
Product Description
High Speed HDPE PP PE Single Wall Medical Corrugated Pipe Production Line/HDPE Crate Pipe Production Line


Normal speed single wall corrugated pipe machine
This production line can be used to produce corrugated pipes of PP/PE/PVC/EVA/PA continuously.
Plastic single wall corrugated pipes have features of high temperature resistance,corosion and abrasion resistance,high intensity and good flexibility,etc.They are widely used in fields of auto wire harness,electric thread-passing pipes,circuit of machine tool,protective of lamps and lantern wires,tubes of air conditioner and washing machine etc.

Specification
PVC PP PE Single wall corrugated pipe extrusion line:
Working process:

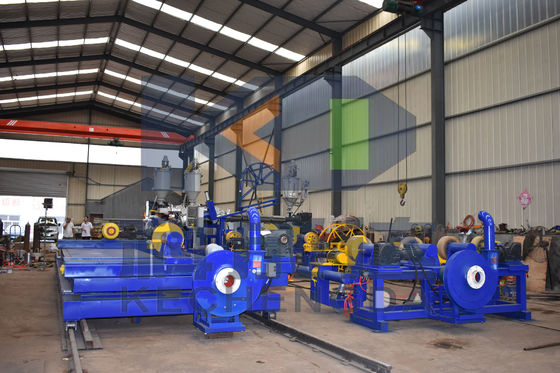

This extrusion line consists of extruders, die head, corrugation forming machine with modules, coiler etc. and can produce different sizes of corrugated pipes.

Features:
1. Extruder: high efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.
2. Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.
3. Forming modules: it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change.
4. Coiler :Single position or double position with torque motor.
5. Electrical parts: ABB inverter, Schneider contactor, RKC thermocontrollers etc.


Parameters
Extrusion Machine
Model
Corrugated
Pipe Diameter(mm)
Extruder Model
Output(kg/h)
Power(kw)
Forming Machine Power(kw)
Module No. (pairs)
Production Line Speed(m/min)
L/D
BDX-12
4-12
SJ-30
8-15
3.7
1.5
42
1-8
28:1
BDX-32
8-32
SJ-45
40
11
2.2
38
1-12
30:1
BDX-65
25-65
SJ-65
60
22
2.2
43
1-8
33:1
BDX-110
50-110
SJ-90
150
37
5.5
50
1-5
33:1
