Fully Automatic PE Pipe Winding Machine Flexible Operation Coiler Hose Winding Plastic Auxiliary Equipment

Place of Origin Qingdao,Shandong,China
Brand Name Kechengda
Minimum Order Quantity 1
Price USD3500-5000/Set
Packaging Details wrapping film
Delivery Time 35 work days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name PE Pipe Winding Machine Weight 800
Warranty 1 Year Key Selling Points Easy To Operate,Fully Automatic
Voltage Other Voltages Can Be Consulted And Customized Color Green,Other Color Can Be Consulted And Customized
Port Qingdao Port Payment T/T
Leave a Message
Product Description

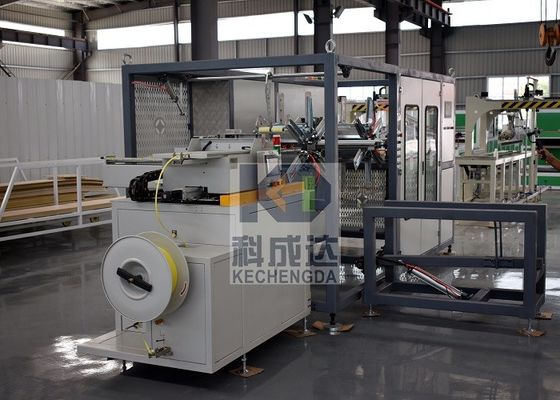

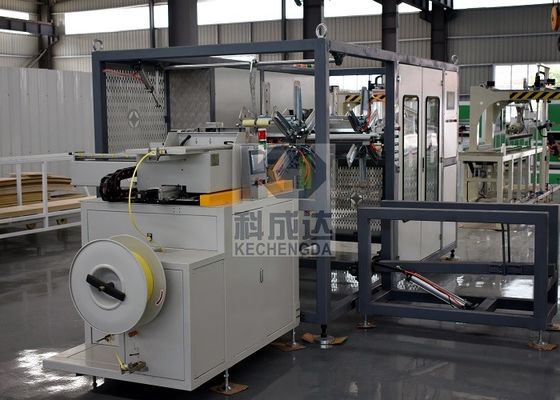

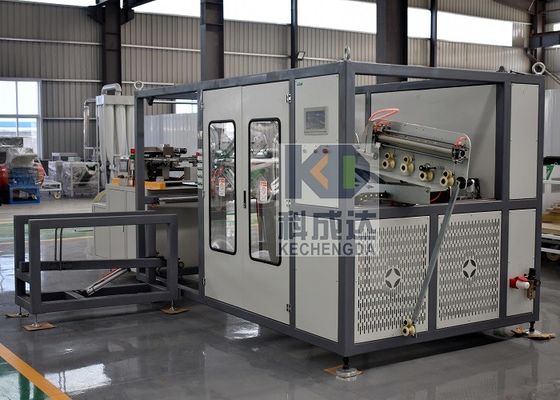

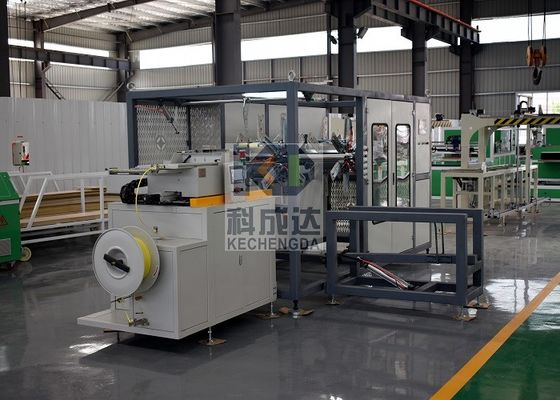

PE Pipe Winding Machine



1.Production Introduction

   The fully automatic PE pipe winding machine is a piece of equipment specially used for winding polyethylene (PE) pipes. It can efficiently roll the produced PE pipes into rolls for easy storage and transportation.



2. Working Principle:

(1) Feeding: The feeding system in which PE pipes are transported from the production line to the winder, usually via a conveyor belt or roller.

(2) Winding: The winding device on the machine will automatically wind the PE pipe on the reel. Typically, the pipe is held in place by a pair of clamping devices during the winding process, and a compact winding structure is gradually formed by rotating the winding drum.

(3) Tension control: Winders are usually equipped with a tension control system to ensure that the pipe maintains proper tension during the winding process. This helps avoid loose or over-tightening of the pipe, ensuring winding quality and uniformity of winding.

(4) Length counting: Winders are usually equipped with a length counting device that can accurately record the length of the winding. This is very important for statistics and management when using and selling pipes later.

(5) Cutting and fixing: When the preset winding length is reached, the winder automatically cuts the pipe and uses a clamping device to fix the wound pipe on the winding shaft.

(6) Automatic discharge: The coiled pipes will be automatically discharged from the winder and stacked or further packaged.



3. Production Line Features

(1) Full automation: The fully automatic PE pipe winding machine has the characteristics of automation and can realize functions such as automatic feeding, automatic winding, automatic cutting and automatic discharge, reducing manual operations and improving production efficiency.

(2) Efficiency: The winding machine can perform winding operations at high speed and continuously, improving the production efficiency of pipes. At the same time, it also has the ability to quickly change lines and can quickly switch between pipes of different specifications.

(3) Stability: Winders usually adopt stable structures and reliable control systems to ensure the stability and consistency of the winding process. It can reduce pipe curling, knotting and entanglement problems and improve winding quality.

(4) Adjustability: The winding machine usually has adjustable winding speed, tension, winding pressure and other parameters to adapt to PE pipes of different specifications and requirements.

(5) Safety: Rewinders are usually equipped with safety devices and protection devices, such as safety doors, emergency stop buttons and overload protection, to ensure the safety of the operator.

The fully automatic PE pipe winding machine plays an important role in the PE pipe production process. It increases production efficiency, improves winding quality, and allows PE pipes to be stored and transported conveniently. This has important economic and practical significance for PE pipe manufacturers and suppliers.



4. Payment

   30% paid by T/T as down payment the balance (70%)should be paid before delivery (by T/T )



5. Information And Key Points:

(1) Applicable pipes: The fully automatic PE pipe winding machine is mainly used to wind polyethylene (PE) pipes, including high-density polyethylene (HDPE), medium-density polyethylene (MDPE) and low-density polyethylene (LDPE), etc. Different types of pipes. They can be PE pipes with different diameters and wall thicknesses.

(2) Winding method: Fully automatic PE pipe winding machines usually use winding shafts or winding drums for winding. The winding shaft is usually a cylindrical shaft made of metal or plastic material, on which the pipe is fixed and the winding is achieved by rotating. A winding drum is usually a cylinder made of metal or paper tubes around which the tubing is wound to form a coil.

(3) Tension control system: The winding machine is equipped with a tension control system to control the tension of the pipe during the winding process. Proper tension control ensures that the pipe is tightly wound and avoids looseness or over-tightening. Tension control systems usually include tension sensors, tension control devices and tension adjustment devices.

(4) Length counting and cutting mechanism: The fully automatic PE pipe winding machine is equipped with a length counting device, which can accurately record the winding length. When the predetermined length is reached, the automatic cutting mechanism cuts the pipe and fixes it on the winding shaft. This ensures that each coiled tube is of consistent length.

(5) Automatic control system: Fully automatic PE pipe winding machines are usually equipped with advanced automatic control systems, which can realize fully automated operations. The operator can set relevant parameters such as winding speed, tension control, length counting, etc. through the touch screen or control panel. Automatic control systems can also provide real-time monitoring and fault diagnosis functions.

(6) Adjustable parameters: The winding machine usually has adjustable parameters to adapt to PE pipes of different specifications and requirements. For example, the winding speed, tension, winding pressure, cutting length, etc. can be adjusted. This allows the winder to accommodate pipes of different diameters, wall thicknesses and lengths.

(7) Safety and reliability: The fully automatic PE pipe winding machine pays attention to safety and reliability. They are usually equipped with safety devices such as safety doors, emergency stop buttons, overload protection and emergency shutdown devices to ensure the safety of operators and equipment. At the same time, the winder adopts a stable structure and reliable components to ensure stable operation for a long time.

The fully automatic PE pipe winding machine plays a key role in the PE pipe production and processing industry. It increases production efficiency, reduces manual operations, and improves winding quality and consistency. The rolled pipe can be stored, transported and sold more easily. This has important economic and practical significance for PE pipe manufacturers and suppliers.
